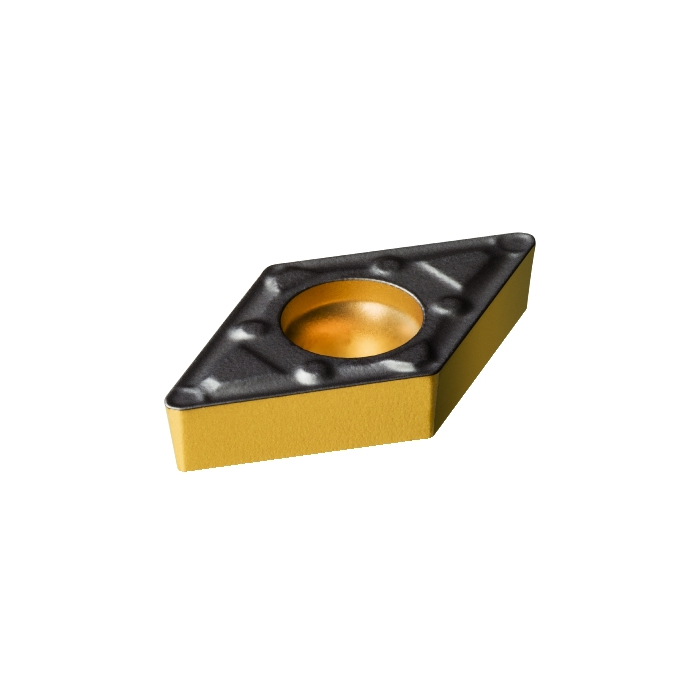

Sandvik Coromant DCMX 11 T3 04-WF 4425 CoroTurn™ 107 insert for turning Previous Sandvik Coromant DCMX 11 T3 04-WF 4425 CoroTurn™ 107 insert for turning

Sandvik Coromant DCMX 11 T3 08-WF 4425 CoroTurn™ 107 insert for turning

R 267,95 inc. vat
In stock
SKU
7860910
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 4.4g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.7938mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4.4mm
LE - Cutting Edge Effective Length 10.8279mm
L - Cutting Edge Length 11.6279mm
KRINS - Major Cutting Edge Angle 93deg
BS - Wiper Edge Length 0.7mm
ORDCODE DCMX 11 T3 08-WF 4425
CHANGEDATE 2022-09-23 22:05:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code D
SSC - Insert Seat Size Code 11
CUTINT_SIZESHAPE - Insert Size And Shape MISO_DC11T3_1
Grade 4425
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation WF
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property True
