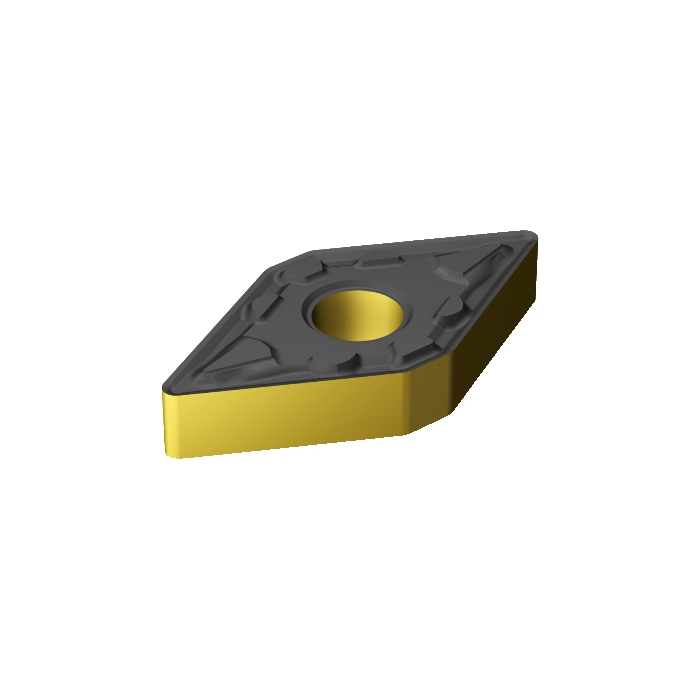

Sandvik Coromant DNMG 15 06 12-MM 2220 T-Max™ P insert for turning

R 301,30 inc. vat
In stock
SKU
7231394
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 16g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 1.1906mm
Insert Thickness 6.35mm
D1 - Fixing Hole Diameter 5.156mm
LE - Cutting Edge Effective Length 14.3038mm
L - Cutting Edge Length 15.5038mm
ORDCODE DNMG 15 06 12-MM 2220
CHANGEDATE 2022-09-23 22:51:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code D
SSC - Insert Seat Size Code 15
CUTINT_SIZESHAPE - Insert Size And Shape MISO_DN1506_1
Grade 2220
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MM
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
