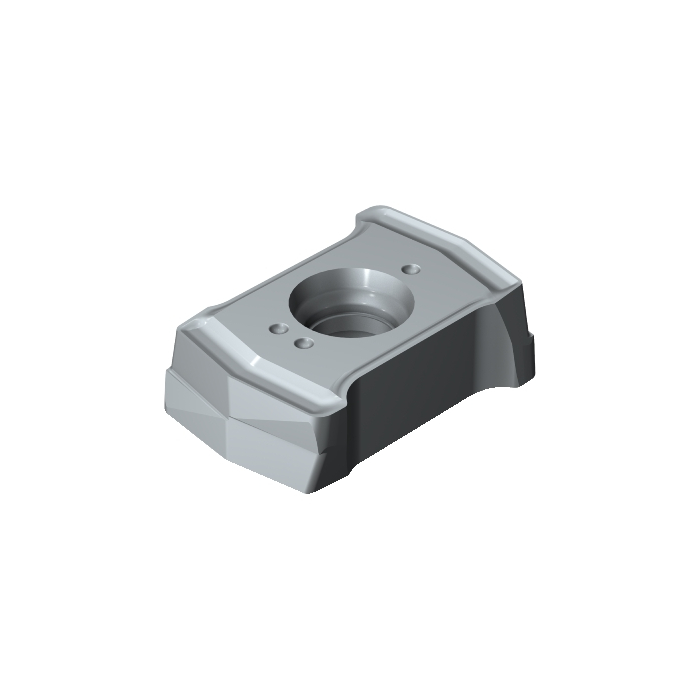

Sandvik Coromant DS20-0104-P-S5W H13A CoroDrill® DS20 insert for drilling
R 227,70
inc. vat
In stock
SKU
7549868
CoroDrill® DS20 insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® DS20 insert for drilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 8g |
| AN - Clearance Angle Major | 1deg |
| RE - Corner Radius | 0.4mm |
| Insert Thickness | 2.725mm |
| BS - Wiper Edge Length | 0.25mm |
| GAN - Insert Rake Angle | 2.5deg |
| W1 - Insert Width | 5mm |
| INSL - Insert Length | 8.5mm |
| BSR - Wiper Edge Radius | 9mm |
| ORDCODE | DS20-0104-P-S5W H13A |
| CHANGEDATE | 2022-09-21 12:32:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 01P |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DQ0104P_1 |
| Grade | H13A |
| SUBSTRATE | HW |
| CBMD - Chip Breaker Manufacturer's Designation | S5W |
| INSUC - Insert Usage Code | P |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | False |
