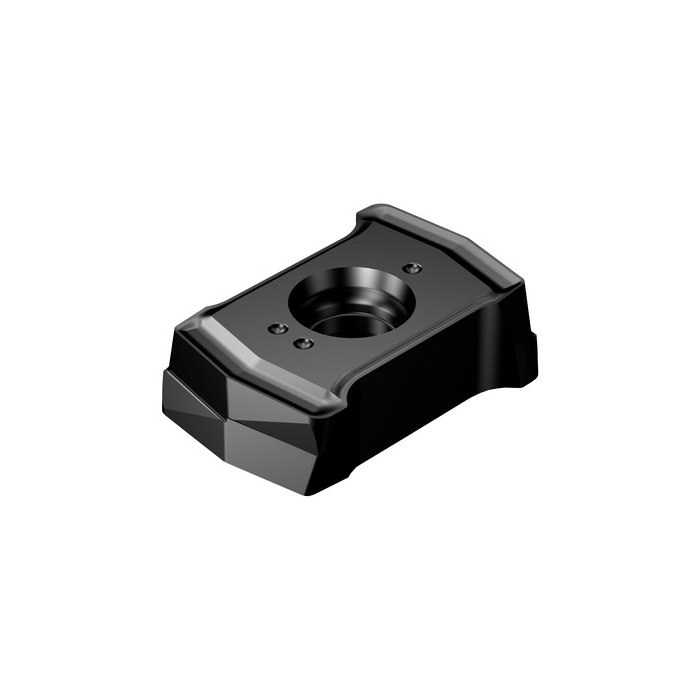

Sandvik Coromant DS20-0306-P-M7W 4324 CoroDrill® DS20 insert for drilling

R 317,40 inc. vat
In stock
SKU
7549923
CoroDrill® DS20 insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® DS20 insert for drilling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 3.13g
AN - Clearance Angle Major 1deg
RE - Corner Radius 0.6mm
Insert Thickness 3.525mm
BS - Wiper Edge Length 0.3mm
GAN - Insert Rake Angle 0deg
W1 - Insert Width 7.35mm
INSL - Insert Length 11.3mm
BSR - Wiper Edge Radius 9mm
ORDCODE DS20-0306-P-M7W 4324
CHANGEDATE 2022-09-21 12:32:00.000
Hand R
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code 03P
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_DQ0306P_1
Grade 4324
COATING CVD TiCN+Al2O3
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation M7W
INSUC - Insert Usage Code P
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
