R 8 674,45
inc. vat
In stock
SKU
7548796

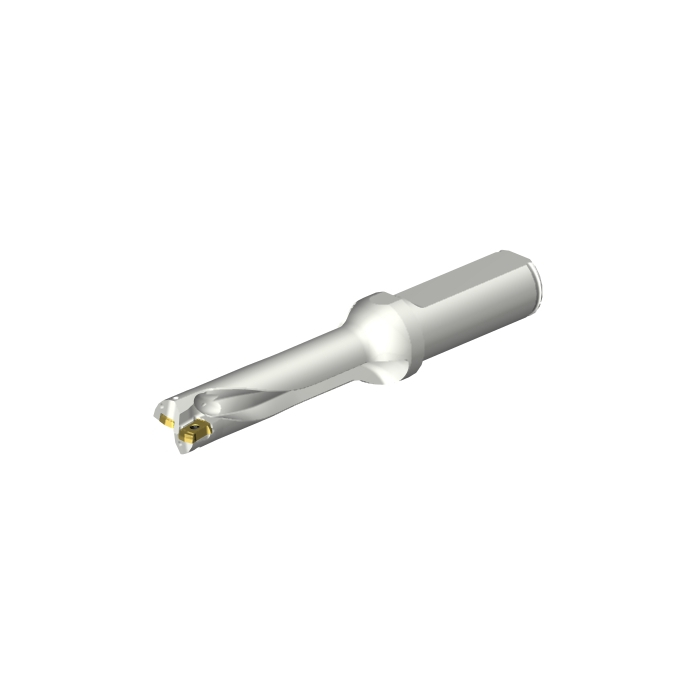

CoroDrill® DS20 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® DS20 indexable insert drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 20mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 84.5369mm |
BD - Body Diameter | 15.6mm |
LB - Body Length | 67mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 0.6Nm |
RPMX - Rotational Speed Maximum | 220001/min |
WT - Weight Of Item | 0.201kg |
OAL - Overall Length | 135mm |
OHX - Maximum Overhang | 84.5369mm |
LSC - Clamping Length | 50mm |
KAPR - Tool Cutting Edge Angle | 81deg |
GAMO - Orthogonal Rake Angle | 5.3deg |
LAMS - Inclination Angle | 0deg |
IC - Inscribed Circle Diameter | 6.02mm |
Insert Thickness | 2.3mm |
H - Shank Height | 18.2mm |
LU - Usable Length | 64.4631mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 0.75mm |
W1 - Insert Width | 5mm |
INSL - Insert Length | 8.5mm |
DC - Cutting Diameter | 16mm |
FHA - Flute Helix Angle | 25deg |
ULDR - Usable Length Diameter Ratio | 4.02894375 |
TCHAL - Achievable Hole Tolerance Lower | 0mm |
TCHAU - Achievable Hole Tolerance Upper | 0.27mm |
PL - Point Length | 0.4631mm |
LCF - Chip Flute Length | 79.3929mm |
SIG - Point Angle | 162deg |
ORDCODE | DS20-D1600L20-04 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLISO_G2000_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-18 11:05:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DQ0104P_1 |
Hand | R |
MIID - Master Insert Identification | DS20-0104-P |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 01P |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
