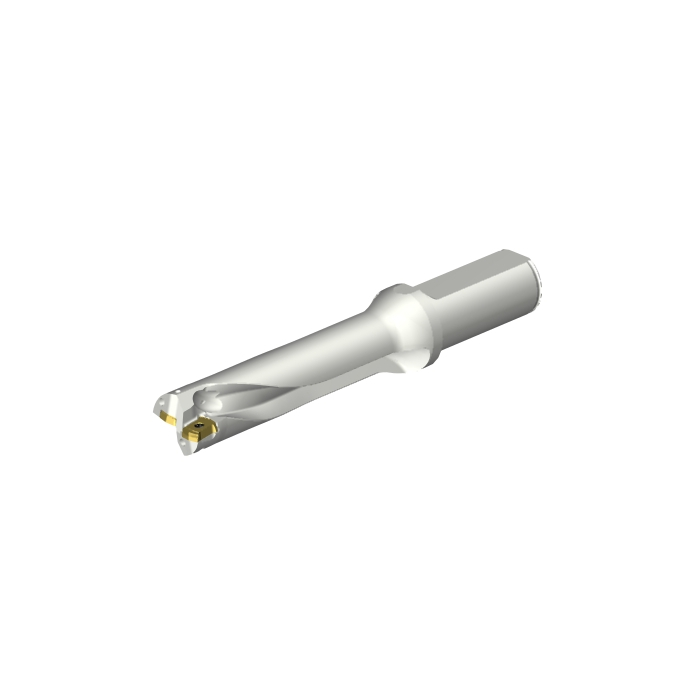

Sandvik Coromant DS20-D2380LX25-04 CoroDrill® DS20 indexable insert drill

R 9 639,30 inc. vat
In stock
SKU
7548848
CoroDrill® DS20 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® DS20 indexable insert drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 25.4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 118.842mm
BD - Body Diameter 23.205mm
LB - Body Length 98.3996mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.9Nm
RPMX - Rotational Speed Maximum 150001/min
WT - Weight Of Item 0.492kg
OAL - Overall Length 175.507mm
OHX - Maximum Overhang 118.842mm
LSC - Clamping Length 56mm
KAPR - Tool Cutting Edge Angle 81deg
GAMO - Orthogonal Rake Angle 5.3deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 8.88mm
Insert Thickness 3.525mm
H - Shank Height 23.4mm
LU - Usable Length 95.8642mm
ADJLN - Minimum Adjustment Limit 0mm
ADJLX - Maximum Adjustment Limit 1.14mm
W1 - Insert Width 7.35mm
INSL - Insert Length 11.3mm
DC - Cutting Diameter 23.7998mm
FHA - Flute Helix Angle 25deg
ULDR - Usable Length Diameter Ratio 4.027941411272
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.33mm
PL - Point Length 0.665mm
LCF - Chip Flute Length 114.0035mm
SIG - Point Angle 162deg
ORDCODE DS20-D2380LX25-04
ADINTMS - Adaptive Interface Machine Direction M_CYLRF1_S1000_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-01-18 11:49:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DQ0306P_1
Hand R
MIID - Master Insert Identification DS20-0306-P
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code 03P
TCDCON - Connection Diameter Tolerance h6
CICT - Cutting Item Count 1
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
