R 12 048,55
inc. vat
In stock
SKU
7548892

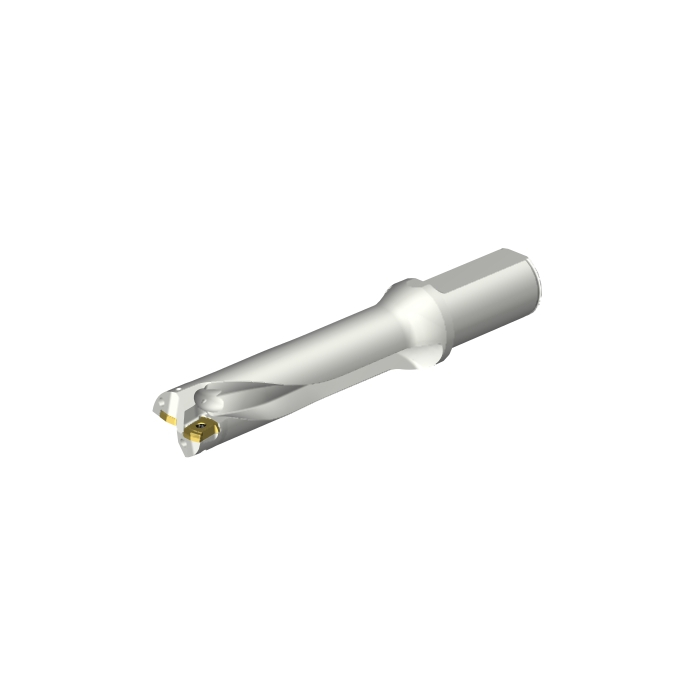

CoroDrill® DS20 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® DS20 indexable insert drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 31.75mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 148.0886mm |
BD - Body Diameter | 29.396055mm |
LB - Body Length | 124.206mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 1.4Nm |
RPMX - Rotational Speed Maximum | 120001/min |
WT - Weight Of Item | 0.709kg |
OAL - Overall Length | 208.9202mm |
OHX - Maximum Overhang | 148.0886mm |
LSC - Clamping Length | 60mm |
KAPR - Tool Cutting Edge Angle | 81deg |
GAMO - Orthogonal Rake Angle | 5.3deg |
LAMS - Inclination Angle | 0deg |
IC - Inscribed Circle Diameter | 11.08mm |
Insert Thickness | 4.25mm |
H - Shank Height | 29.8mm |
LU - Usable Length | 121.4308mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 1.5181mm |
W1 - Insert Width | 9.29mm |
INSL - Insert Length | 13.4mm |
DC - Cutting Diameter | 30.1498mm |
FHA - Flute Helix Angle | 25deg |
ULDR - Usable Length Diameter Ratio | 4.027582272519 |
TCHAL - Achievable Hole Tolerance Lower | 0mm |
TCHAU - Achievable Hole Tolerance Upper | 0.33mm |
PL - Point Length | 0.8316mm |
LCF - Chip Flute Length | 143.407mm |
SIG - Point Angle | 162deg |
ORDCODE | DS20-D3015LX31-04 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRF1_S1250_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-18 11:50:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DQ0407P_1 |
Hand | R |
MIID - Master Insert Identification | DS20-0407-C |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 04C |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
