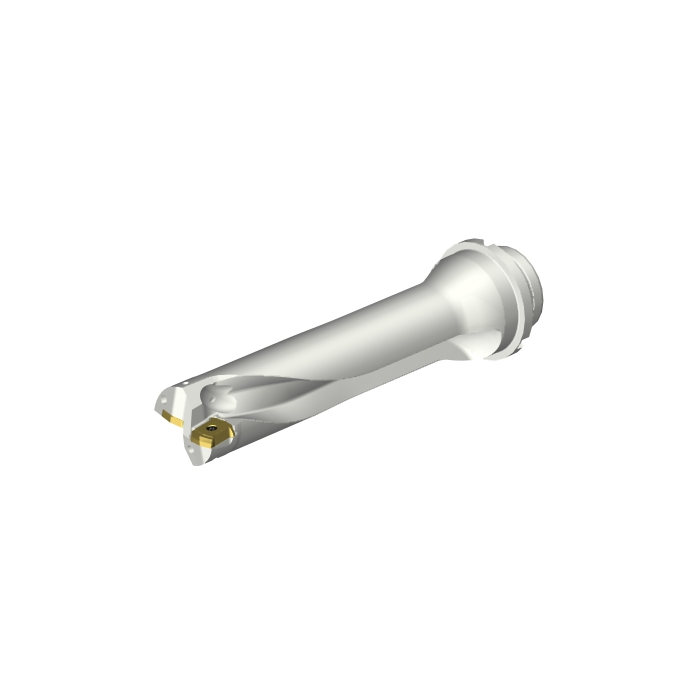

Sandvik Coromant DS20-D4500DM50-04 CoroDrill® DS20 indexable insert drill

R 12 820,20 inc. vat
In stock
SKU
7790730
CoroDrill® DS20 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® DS20 indexable insert drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 50mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 230.7234mm
BD - Body Diameter 43.875mm
LB - Body Length 185mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 80001/min
WT - Weight Of Item 2.13kg
OAL - Overall Length 250mm
OHX - Maximum Overhang 230.7234mm
KAPR - Tool Cutting Edge Angle 81deg
GAMO - Orthogonal Rake Angle 5.3deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 17.46mm
Insert Thickness 3.9mm
LU - Usable Length 181.2766mm
ADJLN - Minimum Adjustment Limit 0mm
ADJLX - Maximum Adjustment Limit 2.65mm
W1 - Insert Width 14.42mm
INSL - Insert Length 19.4mm
DC - Cutting Diameter 45mm
FHA - Flute Helix Angle 25deg
ULDR - Usable Length Diameter Ratio 4.028368888889
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.35mm
PL - Point Length 1.2766mm
LCF - Chip Flute Length 213.682mm
SIG - Point Angle 162deg
ORDCODE DS20-D4500DM50-04
ADINTMS - Adaptive Interface Machine Direction M_FLC11_A0500_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-03-30 15:04:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DQ0608P_1
Hand R
MIID - Master Insert Identification DS20-0608-C
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code 06C
CICT - Cutting Item Count 1
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
