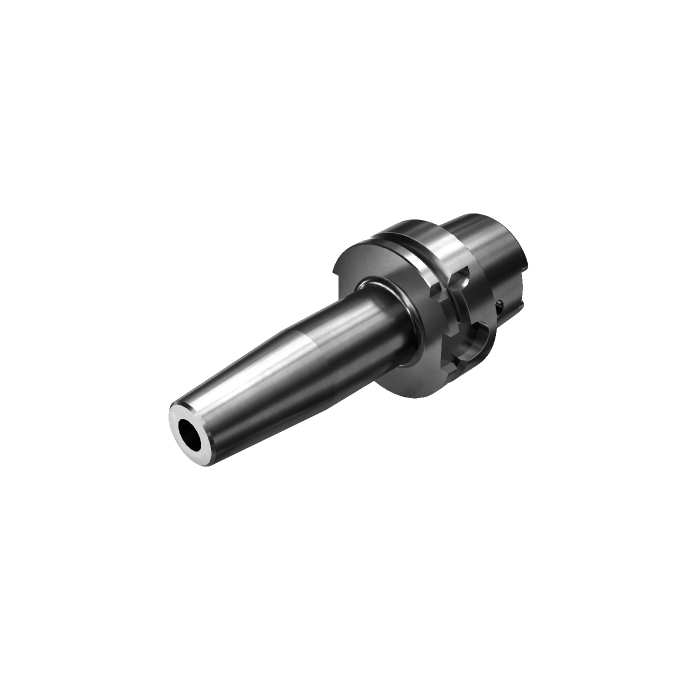

Sandvik Coromant HA06-A-SH09-S-120 HSK to shrink fit chuck
Next
Sandvik Coromant HA06-A-SH06-S-120 HSK to shrink fit chuck
Previous
R 6 929,90
inc. vat
In stock
SKU
8268778
HSK to shrink fit chuck
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to shrink fit chuck
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 48.01mm |
DCON - Connection Diameter | 7.9375mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 120mm |
BD - Body Diameter | 63mm |
LB - Body Length | 120mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 205001/min |
WT - Weight Of Item | 0.99kg |
OAL - Overall Length | 152mm |
OHX - Maximum Overhang | 120mm |
LSC - Clamping Length | 36mm |
ORDCODE | HA06-A-SH08-S-120 |
ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C0630_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CYLSH_R3125_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
DCPS - Data Chip Provision Size | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-20 01:04:00.000 |
STDLET - Standard Letter | A |
STDNO - Standard Number | DIN69893-1 |
TCDCON - Connection Diameter Tolerance | h6 |
DPC - Damping Property | False |
DCP - Data Chip Provision | True |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
