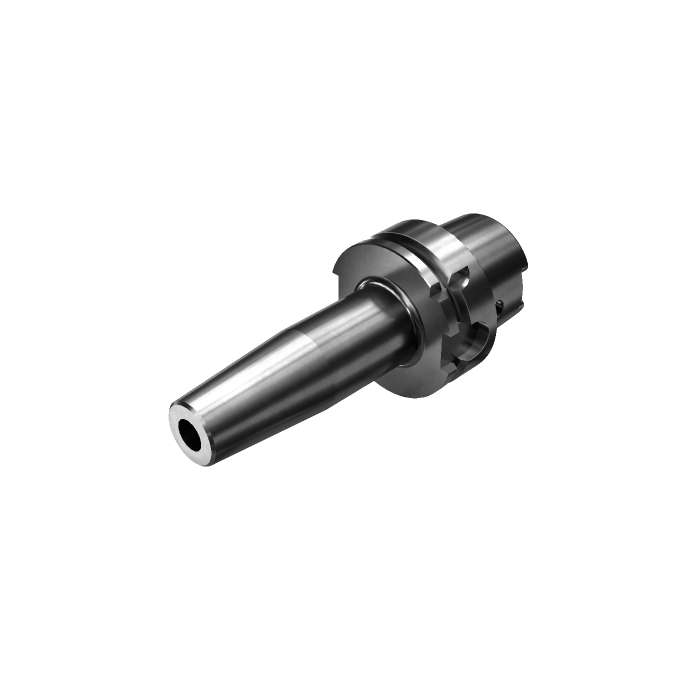

Sandvik Coromant HA10-A-SH25-S-120 HSK to shrink fit chuck

Name: Sandvik Coromant HA10-A-SH25-S-120 HSK to shrink fit chuck
SKU: 8268811
Price: 8860.75 ZAR
Availability: InStock

R 8 860,75 inc. vat

In stock

SKU

8268811

HSK to shrink fit chuck

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

HSK to shrink fit chuck

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	75.013mm
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	120mm
BD - Body Diameter	100mm
LB - Body Length	120mm
BHTA - Body Half Taper Angle	0deg
RPMX - Rotational Speed Maximum	125001/min
WT - Weight Of Item	3.147kg
OAL - Overall Length	170mm
OHX - Maximum Overhang	120mm
LSC - Clamping Length	57mm
ORDCODE	HA10-A-SH25-S-120
ADINTMS - Adaptive Interface Machine Direction	M_HSK01_C1000_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CYLSH_S1000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
DCPS - Data Chip Provision Size	2
BMC - Body Material Code	1
CHANGEDATE	2022-05-20 01:04:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	DIN69893-1
TCDCON - Connection Diameter Tolerance	h6
DPC - Damping Property	False
DCP - Data Chip Provision	True
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
