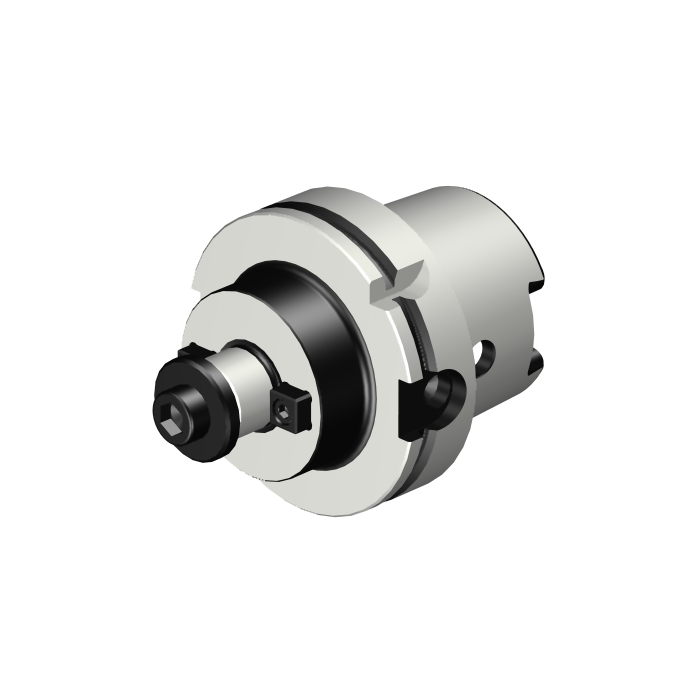

Sandvik Coromant HA10-AR27-B063-050 HSK to arbor adaptor

Name: Sandvik Coromant HA10-AR27-B063-050 HSK to arbor adaptor
SKU: 8049113
Price: 6473.35 ZAR
Availability: InStock

R 6 473,35 inc. vat

In stock

SKU

8049113

HSK to arbor adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

HSK to arbor adaptor

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	75.013mm
DCON - Connection Diameter	27mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	50mm
BD - Body Diameter	100mm
LB - Body Length	50mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	80Nm
RPMX - Rotational Speed Maximum	125001/min
WT - Weight Of Item	2.513kg
OAL - Overall Length	118mm
OHX - Maximum Overhang	50mm
ORDCODE	HA10-AR27-B063-050
ADINTMS - Adaptive Interface Machine Direction	M_HSK01_C1000_1
ADINTWS - Adaptive Interface Workpiece Direction	W_FDA1AB1_G2700_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	4
DCPS - Data Chip Provision Size	2
BMC - Body Material Code	1
CHANGEDATE	2022-09-23 13:20:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	DIN69893-1
DPC - Damping Property	False
DCP - Data Chip Provision	True
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
