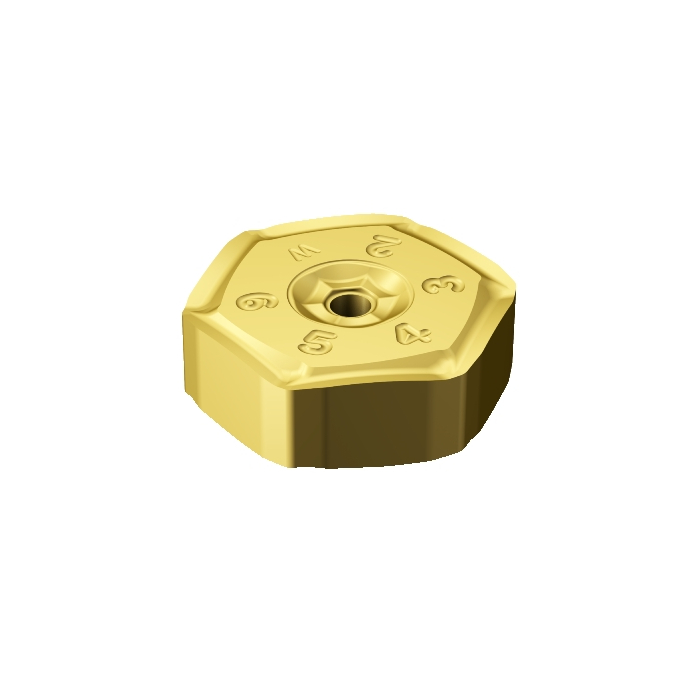

Sandvik Coromant HNEF 09 05 08R-KW 3330 CoroMill™ S-60 insert for milling

R 556,60 inc. vat
In stock
SKU
6428169
CoroMill® S-60 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® S-60 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 18g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 16.26mm
RE - Corner Radius 0.8mm
Insert Thickness 5.56mm
D1 - Fixing Hole Diameter 2.2mm
LE - Cutting Edge Effective Length 9.38mm
L - Cutting Edge Length 9.387715mm
KRINS - Major Cutting Edge Angle 60deg
BS - Wiper Edge Length 4.9mm
GAN - Insert Rake Angle 10deg
APMX - Depth Of Cut Maximum 6mm
KCH - Corner Chamfer 50deg
CHW - Corner Chamfer Width 1.79mm
ORDCODE HNEF 09 05 08R-KW 3330
CHANGEDATE 2022-04-06 04:26:00.000
Hand R
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code H
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_NI0905W_1
Grade 3330
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation KW
CEDC - Cutting Edge Count 12
WEP - Wiper Edge Property True
