Sandvik Coromant L331.1A-04 35 23H-WL1040 CoroMill™ 331 insert for side & facemilling

R 331,20 inc. vat
In stock
SKU
5907083

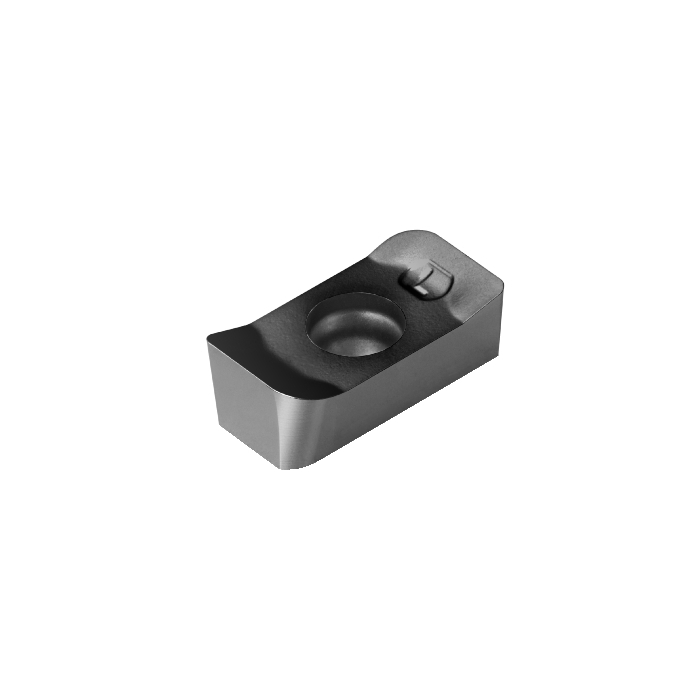

CoroMill® 331 insert for side & facemilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 insert for side & facemilling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 1.5g
AN - Clearance Angle Major 0deg
RE - Corner Radius 2.29mm
Insert Thickness 3.5mm
D1 - Fixing Hole Diameter 2.6mm
LE - Cutting Edge Effective Length 4.6mm
L - Cutting Edge Length 5.1mm
KRINS - Major Cutting Edge Angle 90deg
BS - Wiper Edge Length 0.4mm
APMX - Depth Of Cut Maximum 4.6mm
W1 - Insert Width 9.5mm
ORDCODE L331.1A-04 35 23H-WL1040
CHANGEDATE 2022-09-23 18:03:00.000
Hand L
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 04
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_MW04_1
Grade 1040
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation WL
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property True
