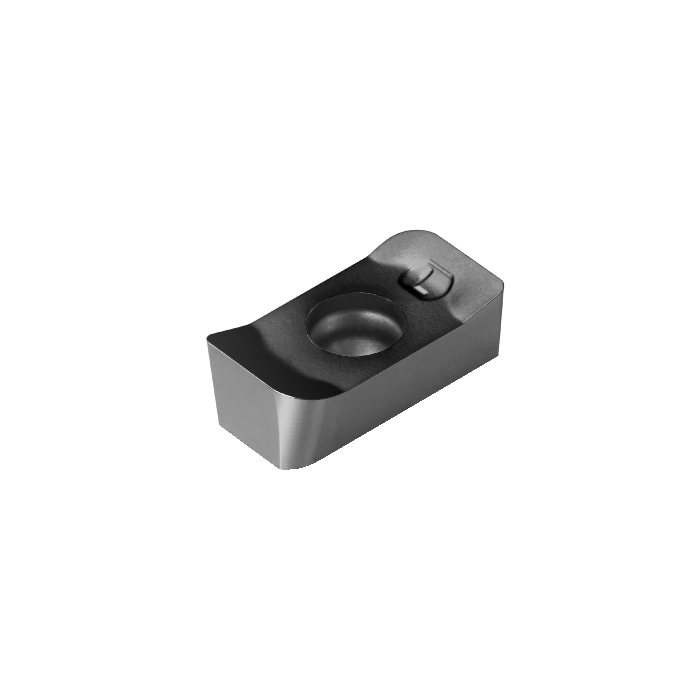

Sandvik Coromant L331.1A-11 50 48H-WL1040 CoroMill™ 331 insert for side & facemilling
Next
Sandvik Coromant L331.1A-11 50 23H-WL1040 CoroMill™ 331 insert for side & facemilling
Previous
![Sandvik Coromant L331.1A-11 50 48H-WL1040 CoroMill™ 331 insert for side & facemilling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/656878cbc/sandvik-coromant-l331-1a-11-50-48h-wl1040-coromilltm-331-insert-for-side-facemilling.jpg)
![Sandvik Coromant L331.1A-11 50 23H-WL1040 CoroMill™ 331 insert for side & facemilling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/65685a2e9/sandvik-coromant-l331-1a-11-50-23h-wl1040-coromilltm-331-insert-for-side-facemilling.jpg)
R 371,45
inc. vat
In stock
SKU
5907122
CoroMill® 331 insert for side & facemilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 insert for side & facemilling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 6.3g |
AN - Clearance Angle Major | 0deg |
RE - Corner Radius | 3.05mm |
Insert Thickness | 4.95mm |
D1 - Fixing Hole Diameter | 4.6mm |
LE - Cutting Edge Effective Length | 10.7mm |
L - Cutting Edge Length | 11.5mm |
KRINS - Major Cutting Edge Angle | 90deg |
BS - Wiper Edge Length | 1.3mm |
APMX - Depth Of Cut Maximum | 10.7mm |
W1 - Insert Width | 11.5mm |
ORDCODE | L331.1A-11 50 30H-WL1040 |
CHANGEDATE | 2022-09-23 18:03:00.000 |
Hand | L |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 11 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MW11_1 |
Grade | 1040 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | WL |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | True |
