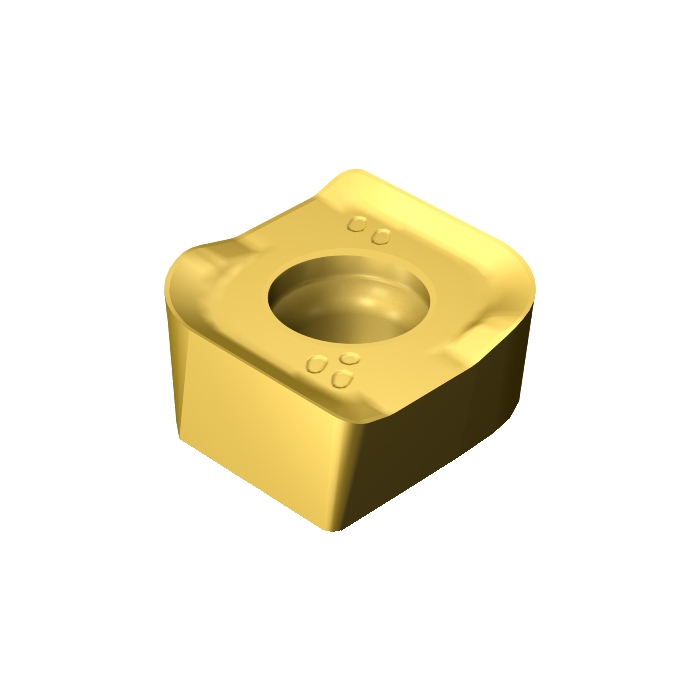

Sandvik Coromant L331.1A-115048E-L50 2040 CoroMill™ 331 insert for side & facemilling
Next
Sandvik Coromant L331.1A-115030E-L50 2040 CoroMill™ 331 insert for side & facemilling
Previous
Sandvik Coromant L331.1A-115030E-L50 2040 CoroMill™ 331 insert for side & facemilling
Previous
Sandvik Coromant L331.1A-115040E-L50 2040 CoroMill™ 331 insert for side & facemilling
R 374,90
inc. vat
Out of stock
SKU
7295702
CoroMill® 331 insert for side & facemilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 insert for side & facemilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.006kg |
| AN - Clearance Angle Major | 0deg |
| RE - Corner Radius | 4mm |
| Insert Thickness | 5mm |
| D1 - Fixing Hole Diameter | 4.6mm |
| LE - Cutting Edge Effective Length | 10.7mm |
| L - Cutting Edge Length | 11.5mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 1.4mm |
| APMX - Depth Of Cut Maximum | 10.7mm |
| W1 - Insert Width | 11.5mm |
| ORDCODE | L331.1A-115040E-L50 2040 |
| CHANGEDATE | 2022-09-23 20:41:00.000 |
| Hand | L |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 11 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MW11_1 |
| Grade | 2040 |
| COATING | CVD TiCrN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | L50 |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
