Sandvik Coromant L331.52-250S50MM CoroMill™ 331 adjustable half side and back face disc milling cutter

Name: Sandvik Coromant L331.52-250S50MM CoroMill™ 331 adjustable half side and back face disc milling cutter
SKU: 5735385
Price: 44358.95 ZAR
Availability: InStock

Be the first to review this product

R 44 358,95 inc. vat

In stock

SKU

5735385

CoroMill® 331 adjustable half side and back face disc milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 331 adjustable half side and back face disc milling cutter

More Information

More Information
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	29.2mm
BD - Body Diameter	244mm
LB - Body Length	26.6mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	85001/min
WT - Weight Of Item	11.96kg
OAL - Overall Length	31.2mm
OHX - Maximum Overhang	29.2mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	0deg
AN - Clearance Angle Major	0deg
Insert Thickness	4.95mm
CDX - Cutting Depth Maximum	89.5mm
W1 - Insert Width	11.5mm
DC - Cutting Diameter	250mm
DCF - Cutting Diameter Face Contact	248.4mm
DCX - Maximum Cutting Diameter	250mm
DHUB - Hub Diameter	69mm
THUB - Hub Thickness	31.2mm
PSW - Premachined Slot Width	0mm
ORDCODE	L331.52-250S50MM
ADINTMS - Adaptive Interface Machine Direction	M_FDA22_G5000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-01-20 14:34:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MW11_1
Hand	L

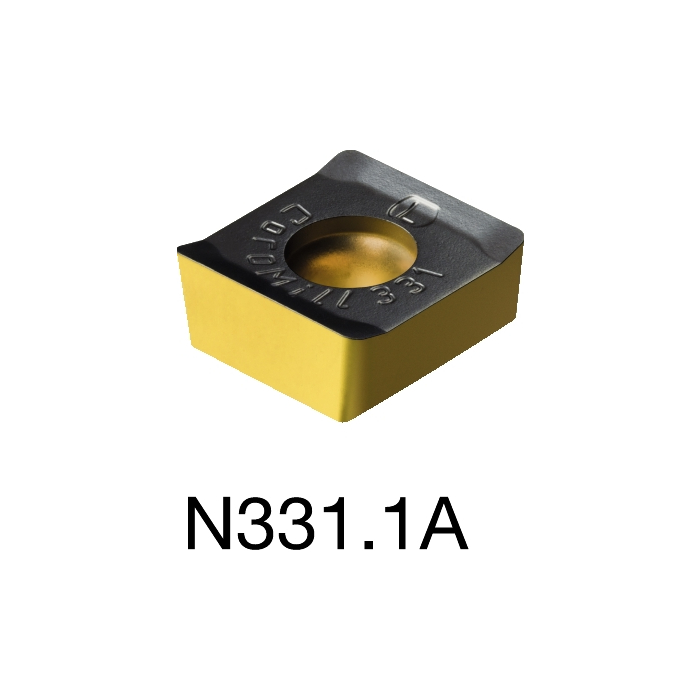

MIID - Master Insert Identification	N331.1A-11
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	11
CICT - Cutting Item Count	16
ZEFP - Peripheral Effective Cutting Edge Count	16
DRVCT - Drive Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
