Sandvik Coromant L365-1505ZNE-KM K20D CoroMill™ 365 insert for milling
R 415,15
inc. vat
In stock
SKU
5735332
CoroMill® 365 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days

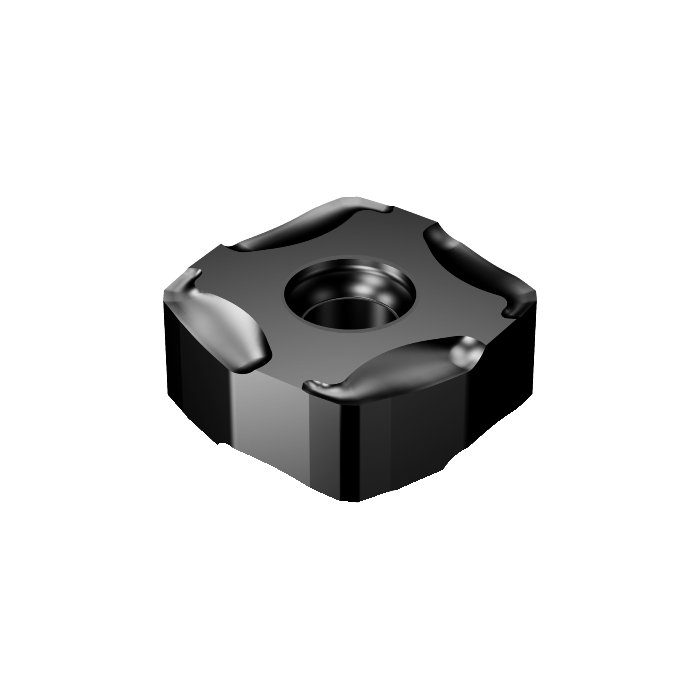

CoroMill® 365 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 14.7g |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 15mm |
| RE - Corner Radius | 0.3mm |
| Insert Thickness | 5.66mm |
| D1 - Fixing Hole Diameter | 4.6mm |
| LE - Cutting Edge Effective Length | 6.4mm |
| KRINS - Major Cutting Edge Angle | 65deg |
| BS - Wiper Edge Length | 1.5mm |
| APMX - Depth Of Cut Maximum | 6mm |
| KCH - Corner Chamfer | 35deg |
| CHW - Corner Chamfer Width | 0.71mm |
| ORDCODE | L365-1505ZNE-KM K20D |
| CHANGEDATE | 2022-09-23 16:37:00.000 |
| Hand | L |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 15 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MG1505_1 |
| Grade | K20D |
| COATING | CVD TiCN+Al2O3 |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | KM |
| CEDC - Cutting Edge Count | 8 |
| WEP - Wiper Edge Property | True |
