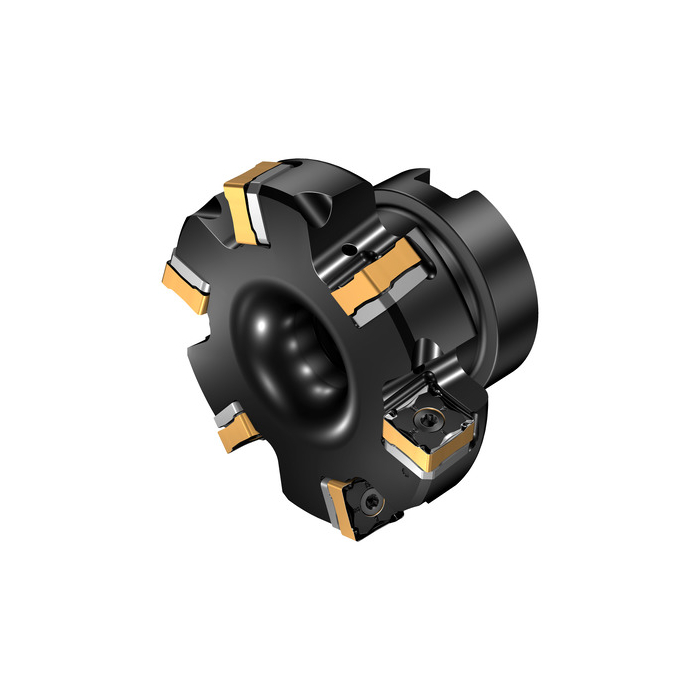

Sandvik Coromant MF80-R100Q32-13H CoroMill™ MF80 face milling cutter

R 16 775,05 inc. vat
In stock
SKU
8172031
CoroMill® MF80 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® MF80 face milling cutter
More Information
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 93001/min
WT - Weight Of Item 0.965kg
OAL - Overall Length 50mm
OHX - Maximum Overhang 50mm
KAPR - Tool Cutting Edge Angle 89.5deg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 13mm
Insert Thickness 5mm
APMX - Depth Of Cut Maximum 9mm
DC - Cutting Diameter 100mm
DCF - Cutting Diameter Face Contact 96.6mm
AZ - Maximum Plunge Depth 0mm
ORDCODE MF80-R100Q32-13H
ADINTMS - Adaptive Interface Machine Direction M_FDA1B1_G3200_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-09-26 01:04:00.000
STDLET - Standard Letter B
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NY1305_1
Hand R
MIID - Master Insert Identification 1305
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 13
CICT - Cutting Item Count 10
ZEFP - Peripheral Effective Cutting Edge Count 10
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
