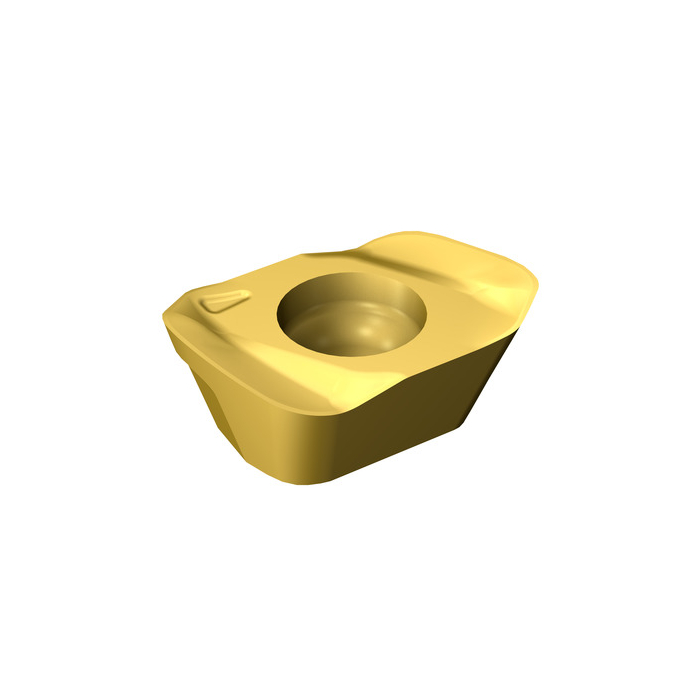

Sandvik Coromant MH20-080425E-L30 2040 CoroMill™ MH20 insert for milling

R 243,80 inc. vat
In stock
SKU
8029483
CoroMill® MH20 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® MH20 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 3g
AN - Clearance Angle Major 12.3deg
RE - Corner Radius 2.1mm
Insert Thickness 4.03mm
D1 - Fixing Hole Diameter 3.4mm
LE - Cutting Edge Effective Length 5.9mm
L - Cutting Edge Length 6.6mm
KRINS - Major Cutting Edge Angle 15deg
BN - Face Land Width 0.17mm
GB - Face Land Angle 9deg
GAN - Insert Rake Angle 13deg
APMX - Depth Of Cut Maximum 1.2mm
W1 - Insert Width 8.5mm
CEMR - Cutting Edge Major Radius 25mm
REEQ - Corner Radius Equivalent 2.5mm
ORDCODE MH20-080425E-L30 2040
CHANGEDATE 2022-09-23 22:14:00.000
Hand R
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 08
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_NW0804_1
Grade 2040
COATING CVD TiCrN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation L30
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property False
