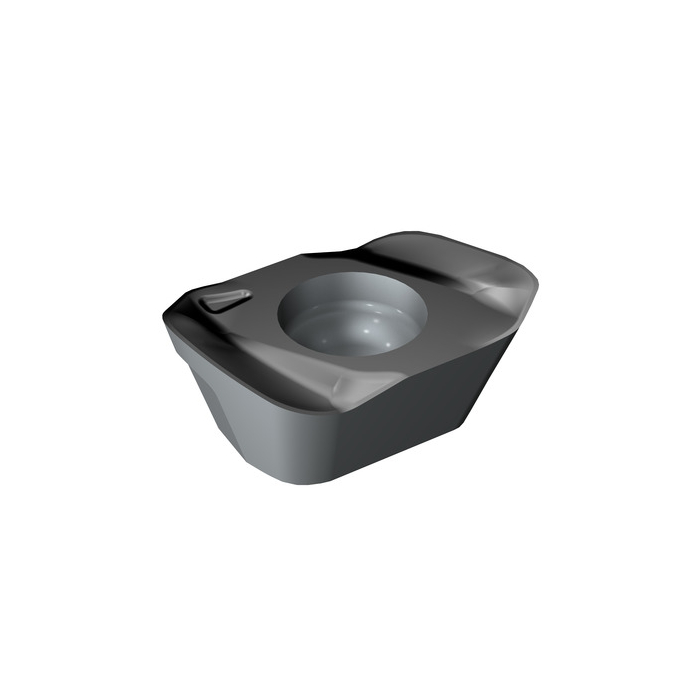

Sandvik Coromant MH20-080425E-L30 S30T CoroMill™ MH20 insert for milling
R 241,50
inc. vat
In stock
SKU
8029479
CoroMill® MH20 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® MH20 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 4.005g |
| AN - Clearance Angle Major | 12.3deg |
| RE - Corner Radius | 2.1mm |
| Insert Thickness | 4.03mm |
| D1 - Fixing Hole Diameter | 3.4mm |
| LE - Cutting Edge Effective Length | 5.9mm |
| L - Cutting Edge Length | 6.6mm |
| KRINS - Major Cutting Edge Angle | 15deg |
| BN - Face Land Width | 0.17mm |
| GB - Face Land Angle | 9deg |
| GAN - Insert Rake Angle | 13deg |
| APMX - Depth Of Cut Maximum | 1.2mm |
| W1 - Insert Width | 8.5mm |
| CEMR - Cutting Edge Major Radius | 25mm |
| REEQ - Corner Radius Equivalent | 2.5mm |
| ORDCODE | MH20-080425E-L30 S30T |
| CHANGEDATE | 2022-09-23 22:14:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 08 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NW0804_1 |
| Grade | S30T |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | L30 |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | False |
