R 193,20
inc. vat
In stock
SKU
8029489

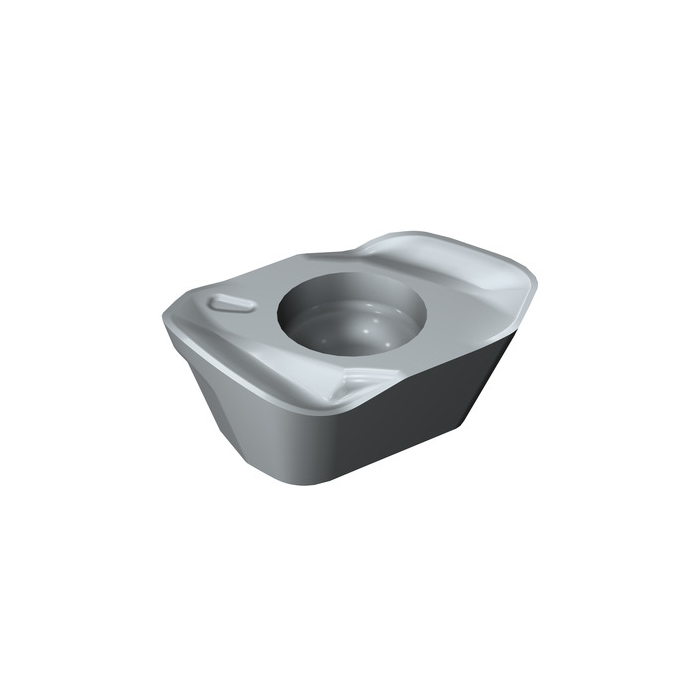

CoroMill® MH20 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® MH20 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 3g |
AN - Clearance Angle Major | 12.3deg |
RE - Corner Radius | 2.1mm |
Insert Thickness | 4.03mm |
D1 - Fixing Hole Diameter | 3.4mm |
LE - Cutting Edge Effective Length | 5.9mm |
L - Cutting Edge Length | 6.6mm |
KRINS - Major Cutting Edge Angle | 15deg |
BN - Face Land Width | 0.22mm |
GB - Face Land Angle | -1deg |
GAN - Insert Rake Angle | 13deg |
APMX - Depth Of Cut Maximum | 1.2mm |
W1 - Insert Width | 8.5mm |
CEMR - Cutting Edge Major Radius | 25mm |
REEQ - Corner Radius Equivalent | 2.5mm |
ORDCODE | MH20-080425M-M20 1130 |
CHANGEDATE | 2022-09-23 22:14:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 08 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NW0804_1 |
Grade | 1130 |
COATING | PVD AlTiCrN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | M20 |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | False |
