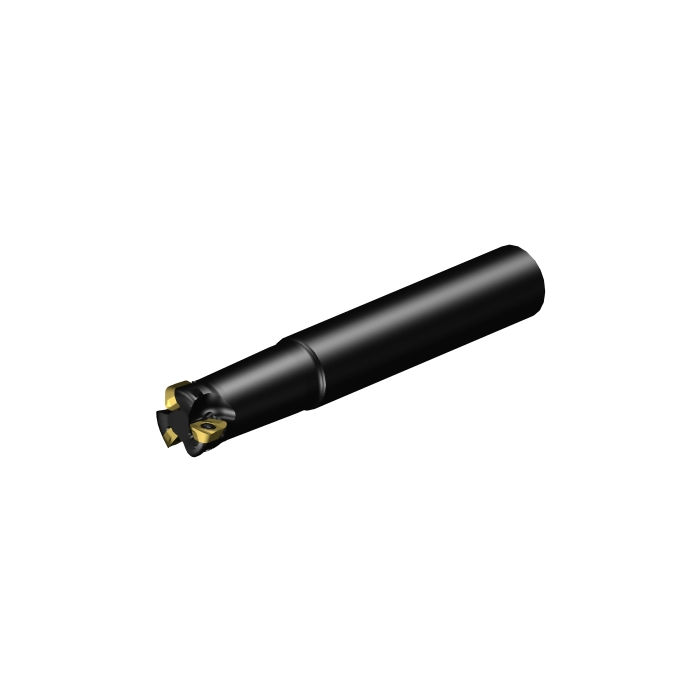

Sandvik Coromant MH20-AR019O19-06M CoroMill™ MH20 face milling cutter

Name: Sandvik Coromant MH20-AR019O19-06M CoroMill™ MH20 face milling cutter
SKU: 8029447
Price: 6029.45 ZAR
Availability: InStock

R 6 029,45 inc. vat

In stock

SKU

8029447

CoroMill® MH20 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® MH20 face milling cutter

More Information
DCON - Connection Diameter	19.05mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	120mm
TQ - Torque	0.9Nm
RPMX - Rotational Speed Maximum	239001/min
WT - Weight Of Item	0.254kg
OAL - Overall Length	120mm
OHX - Maximum Overhang	72.5mm
KAPR - Tool Cutting Edge Angle	15deg
RMPX - Maximum Ramping Angle	6.5deg
AN - Clearance Angle Major	12.3deg
Insert Thickness	3.42mm
LU - Usable Length	40mm
L - Cutting Edge Length	5mm
APMX - Depth Of Cut Maximum	0.8mm
W1 - Insert Width	6.4mm
DC - Cutting Diameter	10.62mm
DCF - Cutting Diameter Face Contact	10.62mm
DCX - Maximum Cutting Diameter	19.05mm
AZ - Maximum Plunge Depth	0.7mm
ORDCODE	MH20-AR019O19-06M
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R7500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-09-09 17:47:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NW0603_1
Hand	R
MIID - Master Insert Identification	MH20-060320..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	06
CICT - Cutting Item Count	3
ZEFP - Peripheral Effective Cutting Edge Count	3
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
