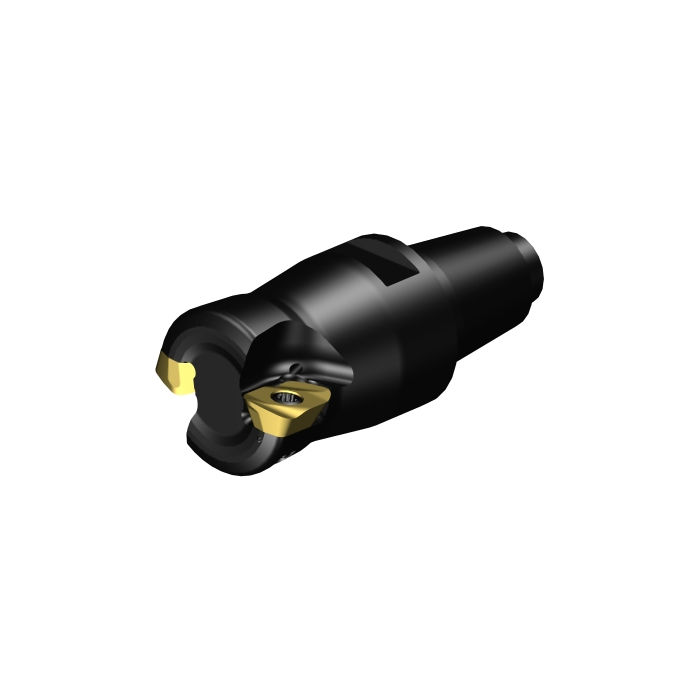

Sandvik Coromant MH20-AR025EH25-08M CoroMill™ MH20 face milling cutter
Next
Sandvik Coromant MH20-AR032O32-08M CoroMill™ MH20 face milling cutter
Previous
![Sandvik Coromant MH20-AR025EH25-08M CoroMill™ MH20 face milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/7198677db/sandvik-coromant-mh20-ar025eh25-08m-coromilltm-mh20-face-milling-cutter.jpg)
![Sandvik Coromant MH20-AR032O32-08M CoroMill™ MH20 face milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/71984aa49/sandvik-coromant-mh20-ar032o32-08m-coromilltm-mh20-face-milling-cutter.jpg)
R 6 331,90
inc. vat
In stock
SKU
8029459
CoroMill® MH20 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® MH20 face milling cutter
DCON - Connection Diameter | 24.5mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 35mm |
TQ - Torque | 2Nm |
RPMX - Rotational Speed Maximum | 207001/min |
WT - Weight Of Item | 0.15kg |
OAL - Overall Length | 59mm |
OHX - Maximum Overhang | 35mm |
KAPR - Tool Cutting Edge Angle | 15deg |
RMPX - Maximum Ramping Angle | 5.5deg |
AN - Clearance Angle Major | 12.3deg |
Insert Thickness | 4.03mm |
L - Cutting Edge Length | 6.6mm |
APMX - Depth Of Cut Maximum | 1.2mm |
W1 - Insert Width | 8.5mm |
DC - Cutting Diameter | 14.75mm |
DCF - Cutting Diameter Face Contact | 14.75mm |
DCX - Maximum Cutting Diameter | 25.4mm |
AZ - Maximum Plunge Depth | 0.9mm |
ORDCODE | MH20-AR025EH25-08L |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_B0250_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:25:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NW0804_1 |
Hand | R |
MIID - Master Insert Identification | MH20-080425.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 08 |
CICT - Cutting Item Count | 2 |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
