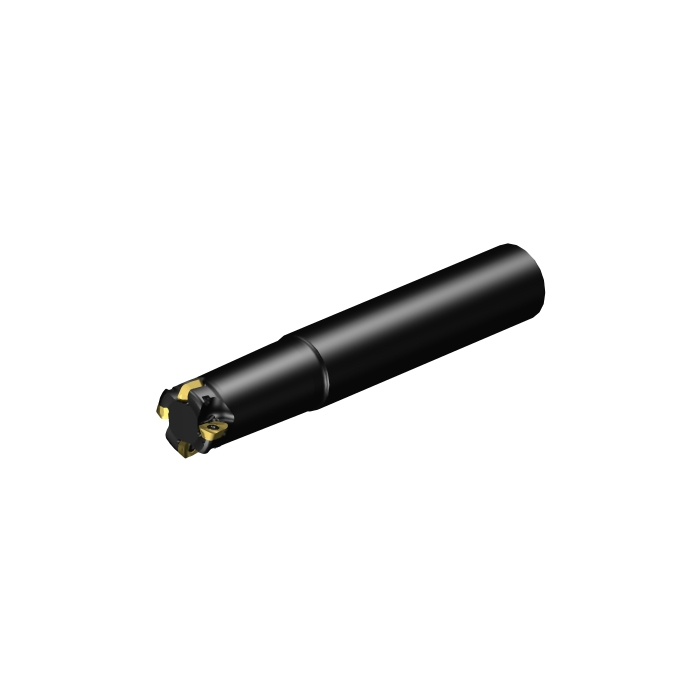

Sandvik Coromant MH20-AR025O25-06H CoroMill™ MH20 face milling cutter

Name: Sandvik Coromant MH20-AR025O25-06H CoroMill™ MH20 face milling cutter
SKU: 8029449
Price: 6604.45 ZAR
Availability: InStock

R 6 604,45 inc. vat

In stock

SKU

8029449

CoroMill® MH20 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® MH20 face milling cutter

More Information
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	150mm
TQ - Torque	0.9Nm
RPMX - Rotational Speed Maximum	207001/min
WT - Weight Of Item	0.53kg
OAL - Overall Length	150mm
OHX - Maximum Overhang	87.5mm
KAPR - Tool Cutting Edge Angle	15deg
RMPX - Maximum Ramping Angle	3.6deg
AN - Clearance Angle Major	12.3deg
Insert Thickness	3.42mm
LU - Usable Length	50mm
L - Cutting Edge Length	5mm
APMX - Depth Of Cut Maximum	0.8mm
W1 - Insert Width	6.4mm
DC - Cutting Diameter	16.97mm
DCF - Cutting Diameter Face Contact	16.97mm
DCX - Maximum Cutting Diameter	25.4mm
AZ - Maximum Plunge Depth	0.7mm
ORDCODE	MH20-AR025O25-06H
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S1000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 17:25:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NW0603_1
Hand	R
MIID - Master Insert Identification	MH20-060320..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	06
CICT - Cutting Item Count	4
ZEFP - Peripheral Effective Cutting Edge Count	4
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	True
