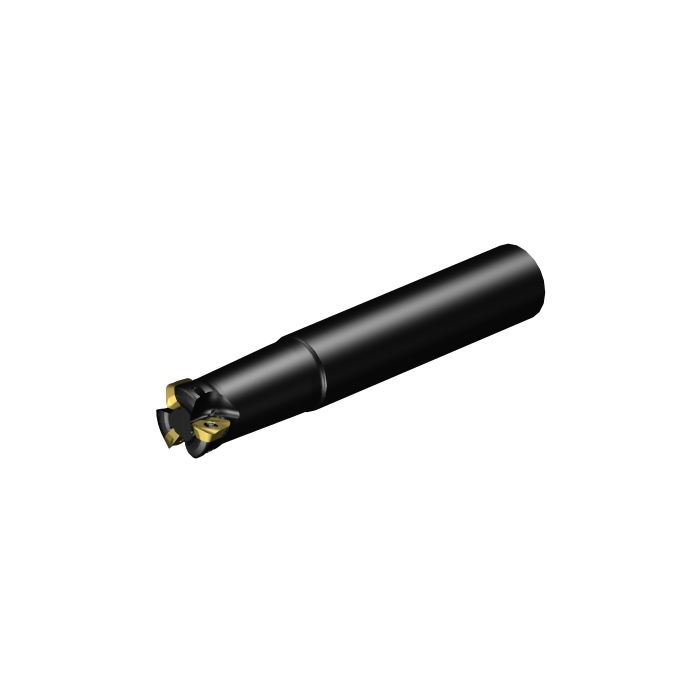

Sandvik Coromant MH20-R025A25-08M CoroMill™ MH20 face milling cutter

R 6 316,95 inc. vat
In stock
SKU
8029433
CoroMill® MH20 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® MH20 face milling cutter
More Information
DCON - Connection Diameter 25mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 150mm
TQ - Torque 2Nm
RPMX - Rotational Speed Maximum 209001/min
WT - Weight Of Item 0.502kg
OAL - Overall Length 150mm
OHX - Maximum Overhang 87.5mm
KAPR - Tool Cutting Edge Angle 15deg
RMPX - Maximum Ramping Angle 5.7deg
AN - Clearance Angle Major 12.3deg
Insert Thickness 4.03mm
LU - Usable Length 50mm
L - Cutting Edge Length 6.6mm
APMX - Depth Of Cut Maximum 1.2mm
W1 - Insert Width 8.5mm
DC - Cutting Diameter 14.35mm
DCF - Cutting Diameter Face Contact 14.35mm
DCX - Maximum Cutting Diameter 25mm
AZ - Maximum Plunge Depth 0.9mm
ORDCODE MH20-R025A25-08M
ADINTMS - Adaptive Interface Machine Direction M_CYLR_G2500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 17:25:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NW0804_1
Hand R
MIID - Master Insert Identification MH20-080425..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 08
CICT - Cutting Item Count 3
ZEFP - Peripheral Effective Cutting Edge Count 3
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CPDF - Cutting Pitch Differential True
