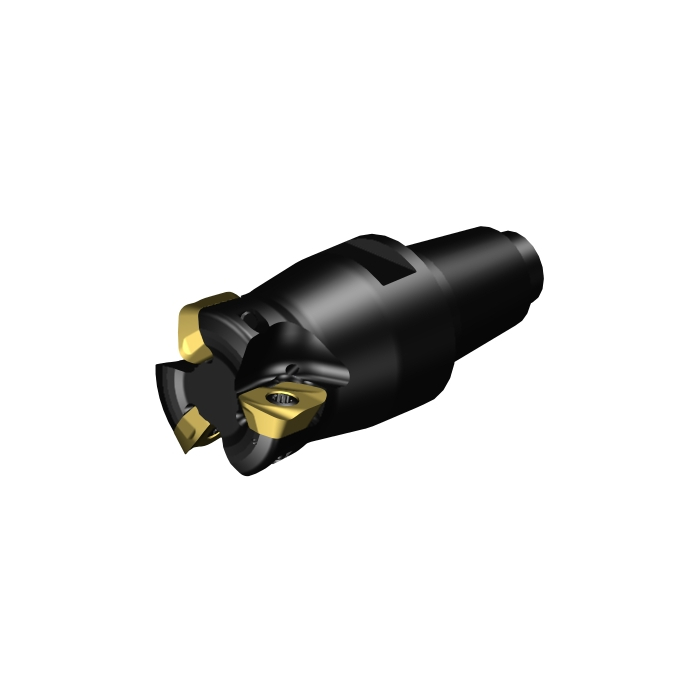

Sandvik Coromant MH20-R025EH25-08M CoroMill™ MH20 face milling cutter
R 6 633,20
inc. vat
In stock
SKU
8029438
CoroMill® MH20 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® MH20 face milling cutter
| DCON - Connection Diameter | 24.2mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 35mm |
| TQ - Torque | 2Nm |
| RPMX - Rotational Speed Maximum | 209001/min |
| WT - Weight Of Item | 0.116kg |
| OAL - Overall Length | 59mm |
| OHX - Maximum Overhang | 35mm |
| KAPR - Tool Cutting Edge Angle | 15deg |
| RMPX - Maximum Ramping Angle | 5.7deg |
| AN - Clearance Angle Major | 12.3deg |
| Insert Thickness | 4.03mm |
| L - Cutting Edge Length | 6.6mm |
| APMX - Depth Of Cut Maximum | 1.2mm |
| W1 - Insert Width | 8.5mm |
| DC - Cutting Diameter | 14.35mm |
| DCF - Cutting Diameter Face Contact | 14.35mm |
| DCX - Maximum Cutting Diameter | 25mm |
| AZ - Maximum Plunge Depth | 0.9mm |
| ORDCODE | MH20-R025EH25-08M |
| ADINTMS - Adaptive Interface Machine Direction | M_SAT01_A0250_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:25:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NW0804_1 |
| Hand | R |
| MIID - Master Insert Identification | MH20-080425.. |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 08 |
| CICT - Cutting Item Count | 3 |
| ZEFP - Peripheral Effective Cutting Edge Count | 3 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
