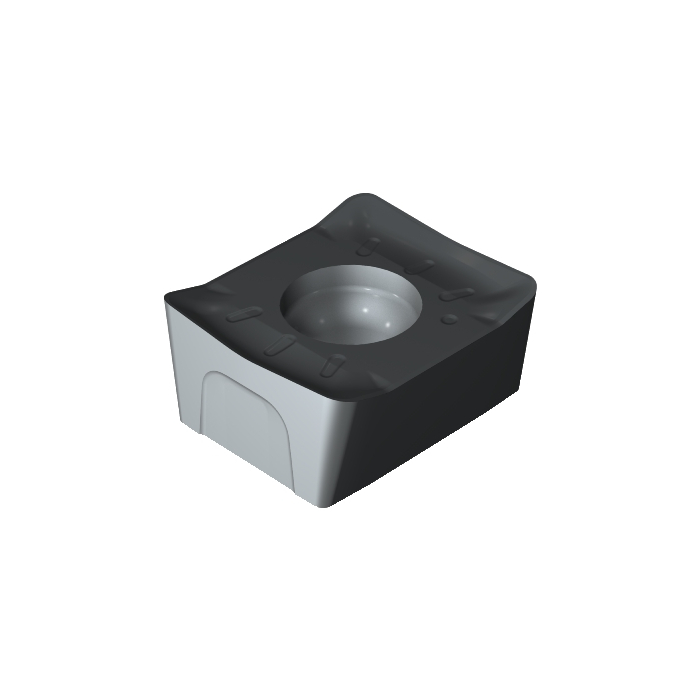

Sandvik Coromant N331.1A-054508E-L30 S30T CoroMill™ 331 insert for side & facemilling
R 301,30
inc. vat
In stock
SKU
7295507
CoroMill® 331 insert for side & facemilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 insert for side & facemilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 3g |
| AN - Clearance Angle Major | 0deg |
| RE - Corner Radius | 0.8mm |
| Insert Thickness | 4.49mm |
| D1 - Fixing Hole Diameter | 2.9mm |
| LE - Cutting Edge Effective Length | 5.7mm |
| L - Cutting Edge Length | 6.5mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BN - Face Land Width | 0.11mm |
| GB - Face Land Angle | 6deg |
| BS - Wiper Edge Length | 1.2mm |
| GAN - Insert Rake Angle | 17deg |
| APMX - Depth Of Cut Maximum | 5.7mm |
| W1 - Insert Width | 9.5mm |
| ORDCODE | N331.1A-054508E-L30 S30T |
| CHANGEDATE | 2022-09-23 20:40:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 05 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MW05_1 |
| Grade | S30T |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | L30 |
| CEDC - Cutting Edge Count | 4 |
| WEP - Wiper Edge Property | True |
