Sandvik Coromant N331.1D-136508M-PM 4220 CoroMill™ 331 insert for side & facemilling
Next
Sandvik Coromant N331.1D-136508M-PM 1020 CoroMill™ 331 insert for side & facemilling
Previous
Sandvik Coromant N331.1D-136508M-PM 1020 CoroMill™ 331 insert for side & facemilling
Previous
Sandvik Coromant N331.1D-136508M-PM 3040 CoroMill™ 331 insert for side & facemilling
R 343,85
inc. vat
In stock
SKU
6398585

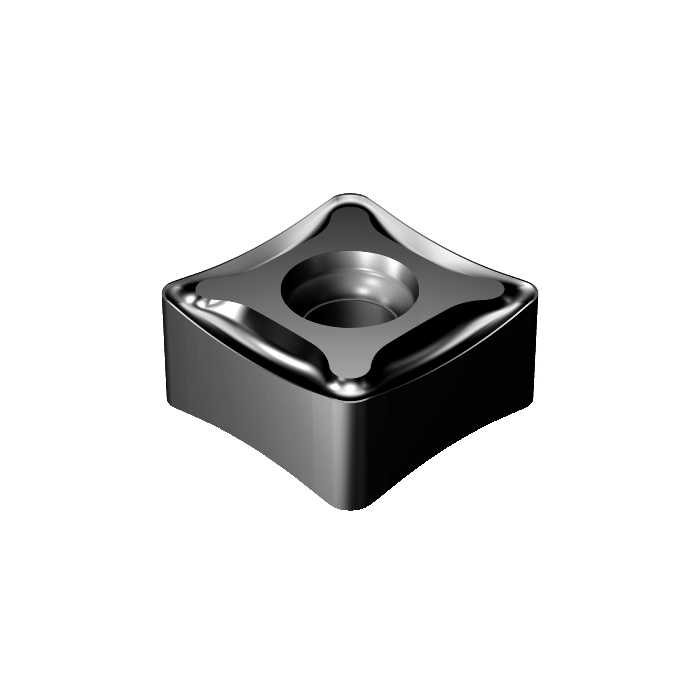

CoroMill® 331 insert for side & facemilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 insert for side & facemilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.014kg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 13.4mm |
| RE - Corner Radius | 0.8mm |
| Insert Thickness | 6.55mm |
| D1 - Fixing Hole Diameter | 4.35mm |
| LE - Cutting Edge Effective Length | 11.4mm |
| L - Cutting Edge Length | 13.4mm |
| KRINS - Major Cutting Edge Angle | 88deg |
| BS - Wiper Edge Length | 1.2mm |
| APMX - Depth Of Cut Maximum | 11.4mm |
| ORDCODE | N331.1D-136508M-PM 3040 |
| CHANGEDATE | 2022-09-23 19:08:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 13 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MW13_1 |
| Grade | 3040 |
| COATING | CVD TiCN+Al2O3 |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PM |
| CEDC - Cutting Edge Count | 8 |
| WEP - Wiper Edge Property | True |
