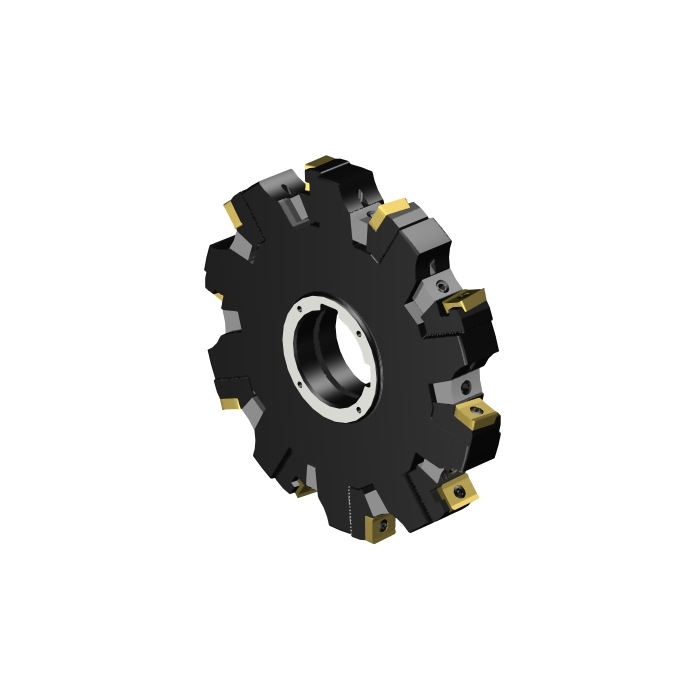

Sandvik Coromant N331.32C-160S40QM CoroMill™ 331 adjustable full side & face disc milling cutter

R 33 969,85 inc. vat
In stock
SKU
7295381
CoroMill® 331 adjustable full side and face disc milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 331 adjustable full side and face disc milling cutter
More Information
CP - Coolant Pressure 8000000Pa
DCON - Connection Diameter 40mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 22.5mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 90001/min
WT - Weight Of Item 2.198kg
OAL - Overall Length 24.5mm
OHX - Maximum Overhang 22.5mm
KAPR - Tool Cutting Edge Angle 90deg
AN - Clearance Angle Major 0deg
Insert Thickness 4.95mm
CW - Cutting Width 20.5mm
CDX - Cutting Depth Maximum 51.5mm
APMX - Depth Of Cut Maximum 20.5mm
W1 - Insert Width 11.5mm
DC - Cutting Diameter 160mm
DCF - Cutting Diameter Face Contact 158.4mm
DCX - Maximum Cutting Diameter 160mm
DHUB - Hub Diameter 55mm
THUB - Hub Thickness 24.5mm
PSW - Premachined Slot Width 0mm
CWX - Maximum Cutting Width 23.5mm
ORDCODE N331.32C-160S40QM
ADINTMS - Adaptive Interface Machine Direction M_FDA22_G4000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-09-26 14:16:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MW14_1
Hand N
MIID - Master Insert Identification N331.1A-14
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 14
CICT - Cutting Item Count 5
ZEFP - Peripheral Effective Cutting Edge Count 5
DRVCT - Drive Count 2
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
