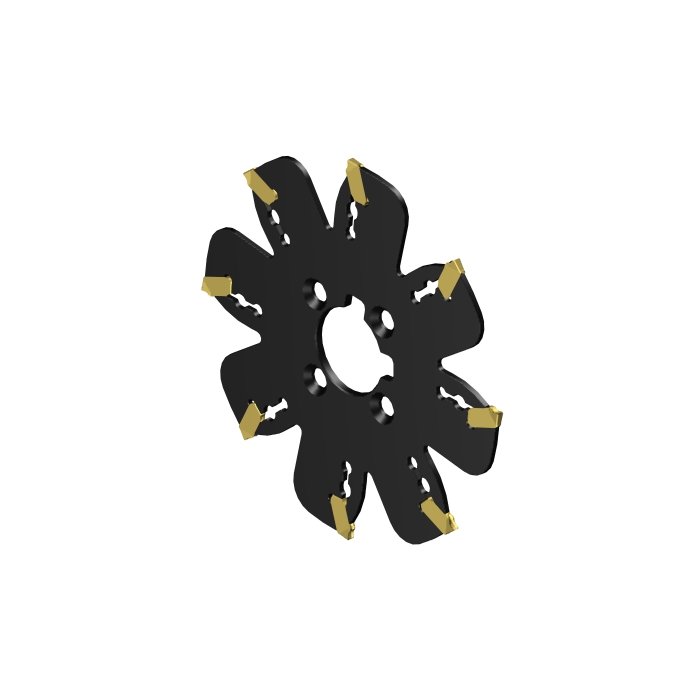

Sandvik Coromant QD-EC125X32-M CoroMill™ QD indexable grooving & parting off cutter
Next
Sandvik Coromant QD-EC080X10-M CoroMill™ QD indexable grooving & parting off cutter
Previous
![Sandvik Coromant QD-EC125X32-M CoroMill™ QD indexable grooving & parting off cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/67348f7bd/sandvik-coromant-qd-ec125x32-m-coromilltm-qd-indexable-grooving-parting-off-cutter.jpg)
![Sandvik Coromant QD-EC080X10-M CoroMill™ QD indexable grooving & parting off cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/67346999b/sandvik-coromant-qd-ec080x10-m-coromilltm-qd-indexable-grooving-parting-off-cutter.jpg)
R 16 988,95
inc. vat
Out of stock
SKU
6657514
CoroMill® QD indexable grooving and parting off cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® QD indexable grooving and parting off cutter
CP - Coolant Pressure | 5000000Pa |
---|---|
DCON - Connection Diameter | 22mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 2.65mm |
RPMX - Rotational Speed Maximum | 39001/min |
WT - Weight Of Item | 0.062kg |
OAL - Overall Length | 2mm |
OHX - Maximum Overhang | 2.65mm |
DBC - Diameter Bolt Circle | 32mm |
KAPR - Tool Cutting Edge Angle | 90deg |
Insert Thickness | 3.1mm |
CW - Cutting Width | 2mm |
CDX - Cutting Depth Maximum | 30mm |
DC - Cutting Diameter | 100mm |
ORDCODE | QD-EC100X22-M |
ADINTMS - Adaptive Interface Machine Direction | M_FDAC24_C0X22_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-17 09:34:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NOE_1 |
Hand | R |
MIID - Master Insert Identification | QD-NE-0200-020E-PM |
SSC - Insert Seat Size Code | E |
CICT - Cutting Item Count | 8 |
ZEFP - Peripheral Effective Cutting Edge Count | 8 |
DRVCT - Drive Count | 2 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
