Sandvik Coromant QD-F-063A25-M CoroMill™ QD indexable grooving & parting off cutter Previous Sandvik Coromant QD-F-063A25-M CoroMill™ QD indexable grooving & parting off cutter

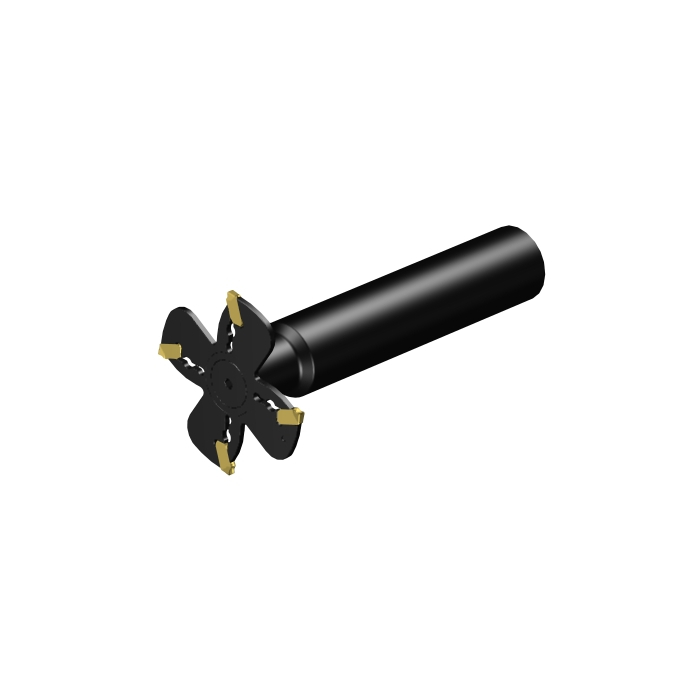

Sandvik Coromant QD-FC063A25-M CoroMill™ QD indexable grooving & parting off cutter

R 11 041,15 inc. vat
In stock
SKU
6657583
CoroMill® QD indexable grooving and parting off cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® QD indexable grooving and parting off cutter
More Information
CP - Coolant Pressure 7000000Pa
DCON - Connection Diameter 25mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 130mm
BD - Body Diameter 19mm
LB - Body Length 22.3mm
BHTA - Body Half Taper Angle 0deg
RPMX - Rotational Speed Maximum 56001/min
WT - Weight Of Item 0.465kg
OAL - Overall Length 130mm
OHX - Maximum Overhang 73mm
LSC - Clamping Length 104.6mm
KAPR - Tool Cutting Edge Angle 90deg
OHN - Minimum Overhang 25.4mm
Insert Thickness 3.1mm
LU - Usable Length 23.9mm
CW - Cutting Width 2.5mm
CDX - Cutting Depth Maximum 21mm
DC - Cutting Diameter 63mm
DN - Neck Diameter 19mm
ORDCODE QD-FC063A25-M
ADINTMS - Adaptive Interface Machine Direction M_CYLR_G2500_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-01-17 09:34:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NOF_2
Hand R
MIID - Master Insert Identification QD-NF-0250-020E-PM
SSC - Insert Seat Size Code F
CICT - Cutting Item Count 4
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CPDF - Cutting Pitch Differential False
