Sandvik Coromant QD-NK-0600-035E-PM 4340 CoroMill™ QD insert for grooving
Next
Sandvik Coromant QD-NF-0250-020E-PM 4340 CoroMill™ QD insert for grooving
Previous


R 428,95
inc. vat
In stock
SKU
7564508

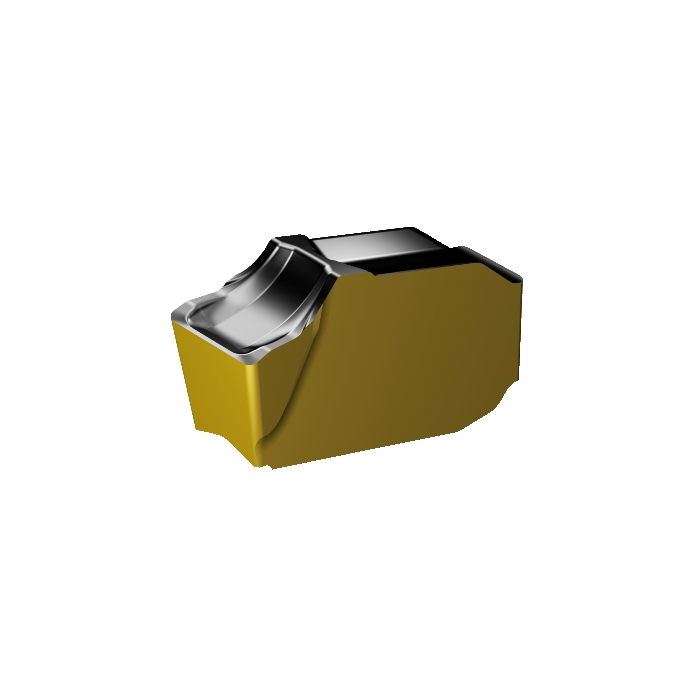

CoroMill® QD insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® QD insert for grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 7g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 5mm |
CW - Cutting Width | 6mm |
CWTOLL - Cutting Width Lower Tolerance | 0.005mm |
CWTOLU - Cutting Width Upper Tolerance | 0.055mm |
REL - Corner Radius Left | 0.35mm |
RER - Corner Radius Right | 0.35mm |
ORDCODE | QD-NK-0600-035E-PL 4340 |
CHANGEDATE | 2022-09-23 21:20:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | K |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NOK_1 |
Grade | 4340 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | PL |
CEDC - Cutting Edge Count | 1 |
