Sandvik Coromant QD-NK-0635-035E-KL 1020 CoroMill™ QD insert for grooving
Next

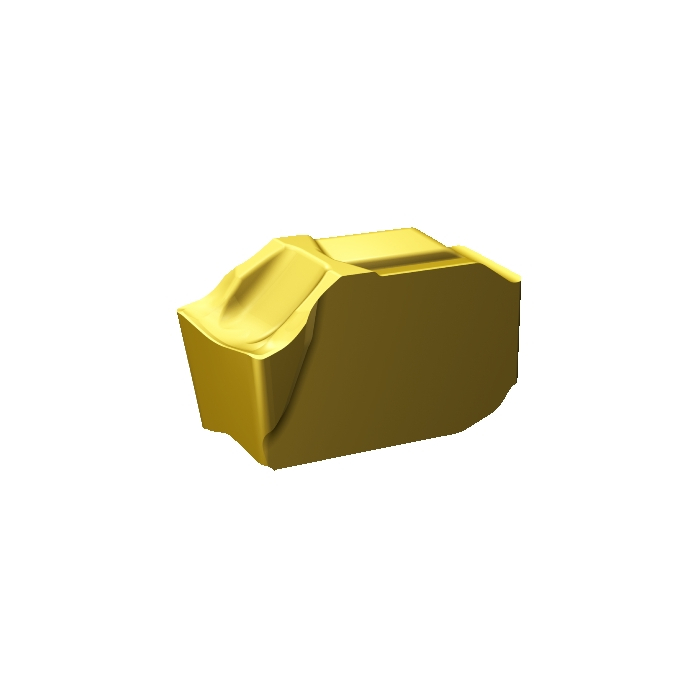

Sandvik Coromant QD-NK-0635-035E-MM 1040 CoroMill™ QD insert for grooving
Previous
![Sandvik Coromant QD-NK-0635-035E-KL 1020 CoroMill™ QD insert for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/672516fde/sandvik-coromant-qd-nk-0635-035e-kl-1020-coromilltm-qd-insert-for-grooving.jpg)
![Sandvik Coromant QD-NK-0635-035E-MM 1040 CoroMill™ QD insert for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/672494778/sandvik-coromant-qd-nk-0635-035e-mm-1040-coromilltm-qd-insert-for-grooving.jpg)
R 427,80
inc. vat
In stock
SKU
6657031
CoroMill® QD insert for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® QD insert for grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.007kg |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 5mm |
CW - Cutting Width | 6.35mm |
CWTOLL - Cutting Width Lower Tolerance | 0.005mm |
CWTOLU - Cutting Width Upper Tolerance | 0.055mm |
REL - Corner Radius Left | 0.35mm |
RER - Corner Radius Right | 0.35mm |
ORDCODE | QD-NK-0635-035E-MM 2040 |
CHANGEDATE | 2022-09-23 19:20:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | K |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_NOK_1 |
Grade | 2040 |
COATING | CVD TiCrN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | MM |
CEDC - Cutting Edge Count | 1 |
