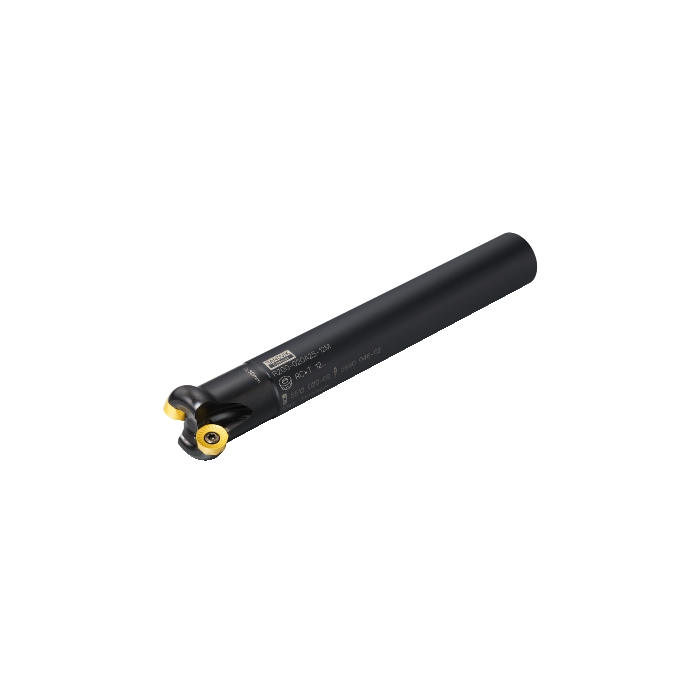

Sandvik Coromant R200-034A32-16M CoroMill™ 200 face milling cutter
R 7 363,45
inc. vat
In stock
SKU
5742439
CoroMill® 200 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 face milling cutter
| DCON - Connection Diameter | 32mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 240mm |
| BD - Body Diameter | 50mm |
| LB - Body Length | 50mm |
| TQ - Torque | 5Nm |
| RPMX - Rotational Speed Maximum | 183001/min |
| WT - Weight Of Item | 1.66kg |
| OAL - Overall Length | 240mm |
| OHX - Maximum Overhang | 180mm |
| LSC - Clamping Length | 60mm |
| RMPX - Maximum Ramping Angle | 11deg |
| GAMO - Orthogonal Rake Angle | -7deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 16mm |
| RE - Corner Radius | 8mm |
| Insert Thickness | 6.35mm |
| APMX - Depth Of Cut Maximum | 8mm |
| DC - Cutting Diameter | 34mm |
| DCF - Cutting Diameter Face Contact | 34mm |
| GAMF - Radial Rake Angle | 0deg |
| GAMP - Axial Rake Angle | -6.99999995deg |
| DCX - Maximum Cutting Diameter | 50mm |
| AZ - Maximum Plunge Depth | 4.9mm |
| ORDCODE | R200-034A32-16M |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_G3200_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 15:46:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RC1606M_1 |
| Hand | R |
| MIID - Master Insert Identification | RCKT 16 06 M0 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 16 |
| CICT - Cutting Item Count | 3 |
| ZEFP - Peripheral Effective Cutting Edge Count | 3 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
| CPDF - Cutting Pitch Differential | False |
