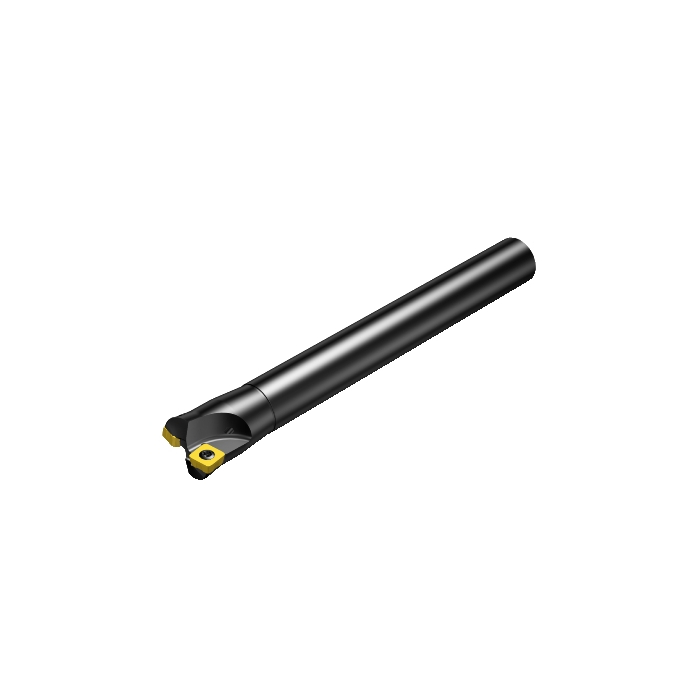

Sandvik Coromant R210-032A25-09H CoroMill™ 210 face milling cutter

Name: Sandvik Coromant R210-032A25-09H CoroMill™ 210 face milling cutter
SKU: 5742341
Price: 6897.70 ZAR
Availability: InStock

R 6 897,70 inc. vat

In stock

SKU

5742341

CoroMill® 210 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 210 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	210mm
BD - Body Diameter	28.96mm
LB - Body Length	45mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	110001/min
WT - Weight Of Item	500g
OAL - Overall Length	210mm
OHX - Maximum Overhang	154mm
LSC - Clamping Length	56mm
KAPR - Tool Cutting Edge Angle	10deg
RMPX - Maximum Ramping Angle	8deg
GAMO - Orthogonal Rake Angle	2deg
LAMS - Inclination Angle	-2deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	9.4mm
Insert Thickness	4mm
APMX - Depth Of Cut Maximum	1.2mm
DC - Cutting Diameter	17.9mm
DCF - Cutting Diameter Face Contact	17.9mm
GAMF - Radial Rake Angle	2.3165902deg
GAMP - Axial Rake Angle	1.62254453deg
DCX - Maximum Cutting Diameter	32mm
AZ - Maximum Plunge Depth	1.8mm
ORDCODE	R210-032A25-09H
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G2500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:46:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MA0904_1
Hand	R
MIID - Master Insert Identification	R210-090412M-
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	09
TCDCON - Connection Diameter Tolerance	h7
CICT - Cutting Item Count	3
ZEFP - Peripheral Effective Cutting Edge Count	3
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
