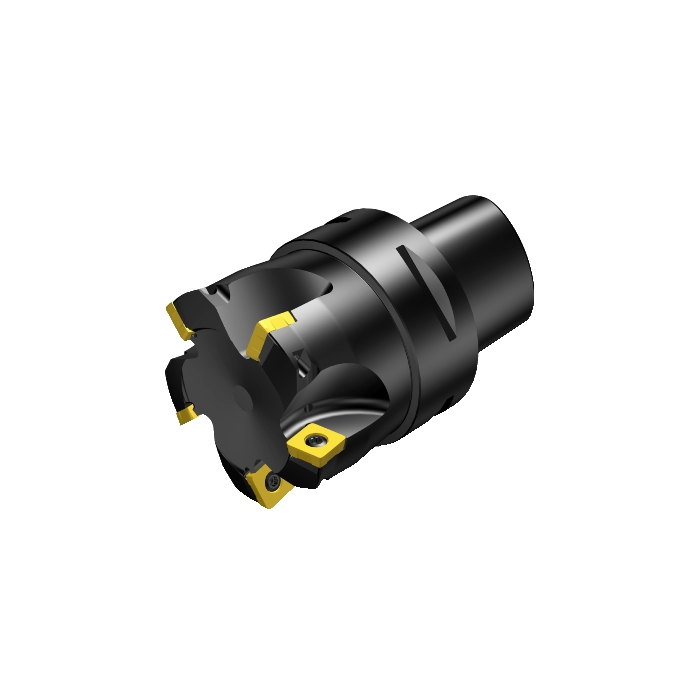

Sandvik Coromant R210-052C5-09H CoroMill™ 210 face milling cutter

Name: Sandvik Coromant R210-052C5-09H CoroMill™ 210 face milling cutter
SKU: 5742483
Price: 11022.75 ZAR
Availability: InStock

R 11 022,75 inc. vat

In stock

SKU

5742483

CoroMill® 210 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 210 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	70mm
BD - Body Diameter	48.96mm
LB - Body Length	70mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	240001/min
WT - Weight Of Item	0.9kg
OAL - Overall Length	100mm
OHX - Maximum Overhang	70mm
KAPR - Tool Cutting Edge Angle	10deg
RMPX - Maximum Ramping Angle	3.3deg
GAMO - Orthogonal Rake Angle	2deg
LAMS - Inclination Angle	2deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	9.4mm
Insert Thickness	4mm
APMX - Depth Of Cut Maximum	1.2mm
DC - Cutting Diameter	37.9mm
DCF - Cutting Diameter Face Contact	37.9mm
GAMF - Radial Rake Angle	-1.62254453deg
GAMP - Axial Rake Angle	2.3165902deg
DCX - Maximum Cutting Diameter	52mm
AZ - Maximum Plunge Depth	1.8mm
ORDCODE	R210-052C5-09H
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0500_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:45:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MA0904_1
Hand	R
MIID - Master Insert Identification	R210-090412M-
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	09
CICT - Cutting Item Count	5
ZEFP - Peripheral Effective Cutting Edge Count	5
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
