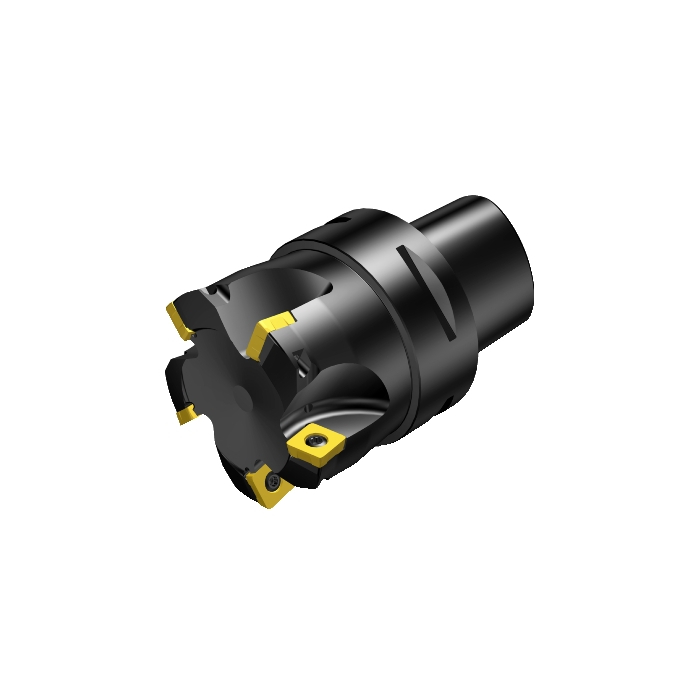

Sandvik Coromant R210-086C8-14H CoroMill™ 210 face milling cutter

Name: Sandvik Coromant R210-086C8-14H CoroMill™ 210 face milling cutter
SKU: 5742661
Price: 14629.15 ZAR
Availability: InStock

R 14 629,15 inc. vat

In stock

SKU

5742661

CoroMill® 210 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 210 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DFC - Functional Diameter	55mm
DCON - Connection Diameter	80mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	80mm
BD - Body Diameter	81.65mm
LB - Body Length	80mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	147001/min
WT - Weight Of Item	3.3kg
OAL - Overall Length	128mm
OHX - Maximum Overhang	80mm
KAPR - Tool Cutting Edge Angle	10deg
RMPX - Maximum Ramping Angle	2.2deg
GAMO - Orthogonal Rake Angle	2deg
LAMS - Inclination Angle	2deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	14.5mm
Insert Thickness	4.7625mm
APMX - Depth Of Cut Maximum	2mm
DC - Cutting Diameter	62mm
DCF - Cutting Diameter Face Contact	62mm
GAMF - Radial Rake Angle	-1.62254453deg
GAMP - Axial Rake Angle	2.3165902deg
DCX - Maximum Cutting Diameter	86mm
AZ - Maximum Plunge Depth	2mm
ORDCODE	R210-086C8-14H
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0800_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-09-26 13:44:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MA1405_1
Hand	R
MIID - Master Insert Identification	R210-140512M-
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	14
CICT - Cutting Item Count	6
ZEFP - Peripheral Effective Cutting Edge Count	6
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
