R 412,85
inc. vat
In stock
SKU
5853540
CoroMill® 210 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days

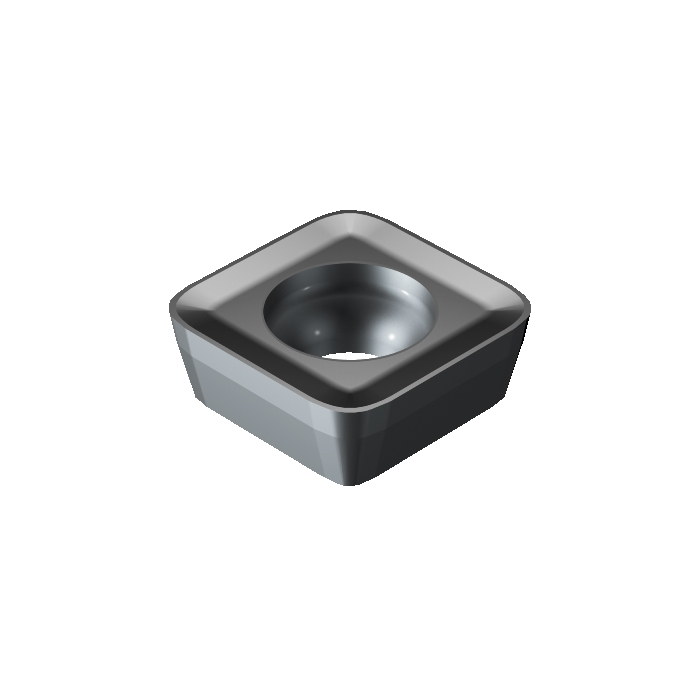

CoroMill® 210 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 11.6g |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 14.6mm |
RE - Corner Radius | 1.4mm |
Insert Thickness | 5.26mm |
D1 - Fixing Hole Diameter | 5.7mm |
LE - Cutting Edge Effective Length | 10.83mm |
L - Cutting Edge Length | 14.5mm |
KRINS - Major Cutting Edge Angle | 10deg |
BS - Wiper Edge Length | 0.71mm |
APMX - Depth Of Cut Maximum | 2mm |
BSR - Wiper Edge Radius | 50mm |
REEQ - Corner Radius Equivalent | 3.5mm |
ORDCODE | R210-14 05 14E-PM S30T |
CHANGEDATE | 2022-09-23 17:50:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 14 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MA1405_2 |
Grade | S30T |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | PM |
CEDC - Cutting Edge Count | 4 |
WEP - Wiper Edge Property | True |
