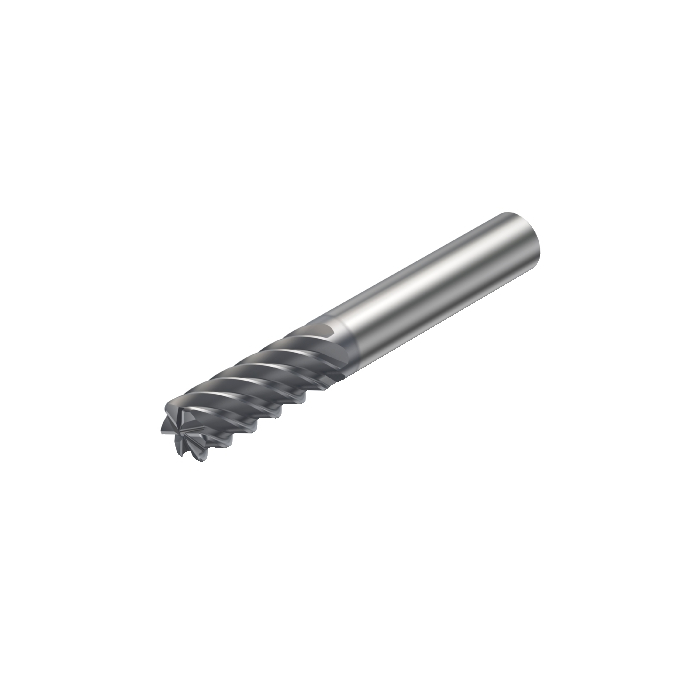

Sandvik Coromant R215.26-10050EAC22H 1610 CoroMill™ Plura solid carbide end mill for Finishing
Next
Sandvik Coromant R215.26-10050CAC22H 1610 CoroMill™ Plura solid carbide end mill for Finishing
Previous
![Sandvik Coromant R215.26-10050EAC22H 1610 CoroMill™ Plura solid carbide end mill for Finishing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/630581cfc/sandvik-coromant-r215-26-10050eac22h-1610-coromilltm-plura-solid-carbide-end-mill-for-finishing.jpg)
![Sandvik Coromant R215.26-10050CAC22H 1610 CoroMill™ Plura solid carbide end mill for Finishing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/63056e915/sandvik-coromant-r215-26-10050cac22h-1610-coromilltm-plura-solid-carbide-end-mill-for-finishing.jpg)
R 3 846,75
inc. vat
In stock
SKU
5742678
CoroMill® Plura solid carbide end mill for Finishing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Finishing
DCON - Connection Diameter | 10mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 72mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.09kg |
OAL - Overall Length | 72mm |
OHX - Maximum Overhang | 32mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RE - Corner Radius | 1.5mm |
LU - Usable Length | 22mm |
APMX - Depth Of Cut Maximum | 22mm |
DC - Cutting Diameter | 10mm |
DCF - Cutting Diameter Face Contact | 7mm |
FHA - Flute Helix Angle | 50deg |
GAMF - Radial Rake Angle | -8.5deg |
GAMP - Axial Rake Angle | 1.5deg |
ULDR - Usable Length Diameter Ratio | 2.2 |
ORDCODE | R215.26-10050DAC22H 1610 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:16:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h5 |
Grade | 1610 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | DIN 6527 L |
ZEFP - Peripheral Effective Cutting Edge Count | 6 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | False |
CPDF - Cutting Pitch Differential | False |
