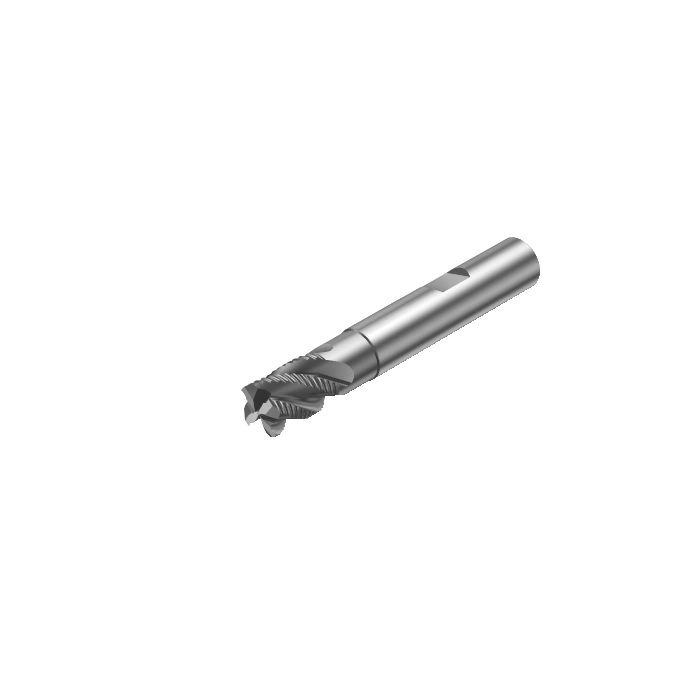

Sandvik Coromant R215.34C10040-DS11K 1640 CoroMill™ Plura solid carbide end mill for roughing with chip breaker
R 3 279,80
inc. vat
In stock
SKU
5742596
CoroMill® Plura solid carbide end mill for roughing with chip breaker
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for roughing with chip breaker
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 10mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 66mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 75.2g |
OAL - Overall Length | 66mm |
OHX - Maximum Overhang | 26mm |
LSC - Clamping Length | 40mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
RE - Corner Radius | 0.4mm |
H - Shank Height | 8.4mm |
LU - Usable Length | 24mm |
MHD - Mounting Hole Distance | 20mm |
APMX - Depth Of Cut Maximum | 11mm |
DC - Cutting Diameter | 10mm |
DCF - Cutting Diameter Face Contact | 9.2mm |
DN - Neck Diameter | 9.5mm |
FHA - Flute Helix Angle | 40deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ULDR - Usable Length Diameter Ratio | 2.4 |
ORDCODE | R215.34C10040-DS11K 1640 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLW_G1000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:02:00.000 |
STDLET - Standard Letter | HB |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1640 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | DIN 6527 K |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | False |
CPDF - Cutting Pitch Differential | False |
