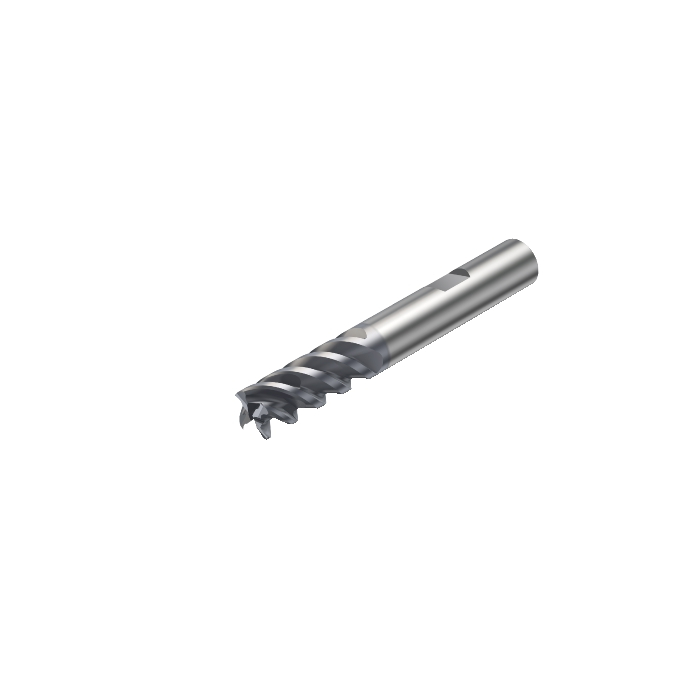

Sandvik Coromant R215.34C12050-BC26P 1640 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
R 4 267,65
inc. vat
In stock
SKU
5742617
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 12mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 83mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.126kg |
OAL - Overall Length | 83mm |
OHX - Maximum Overhang | 38mm |
LSC - Clamping Length | 45mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
H - Shank Height | 10.4mm |
LU - Usable Length | 26mm |
MHD - Mounting Hole Distance | 22.5mm |
APMX - Depth Of Cut Maximum | 26mm |
KCH - Corner Chamfer | 45deg |
CHW - Corner Chamfer Width | 0.1mm |
DC - Cutting Diameter | 12mm |
DCF - Cutting Diameter Face Contact | 11.8mm |
FHA - Flute Helix Angle | 50deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ULDR - Usable Length Diameter Ratio | 2.166666666667 |
ORDCODE | R215.34C12050-BC26P 1640 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLW_G1200_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:16:00.000 |
STDLET - Standard Letter | HB |
STDNO - Standard Number | ISO3338-2 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1640 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | VFD |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | False |
CPDF - Cutting Pitch Differential | False |
