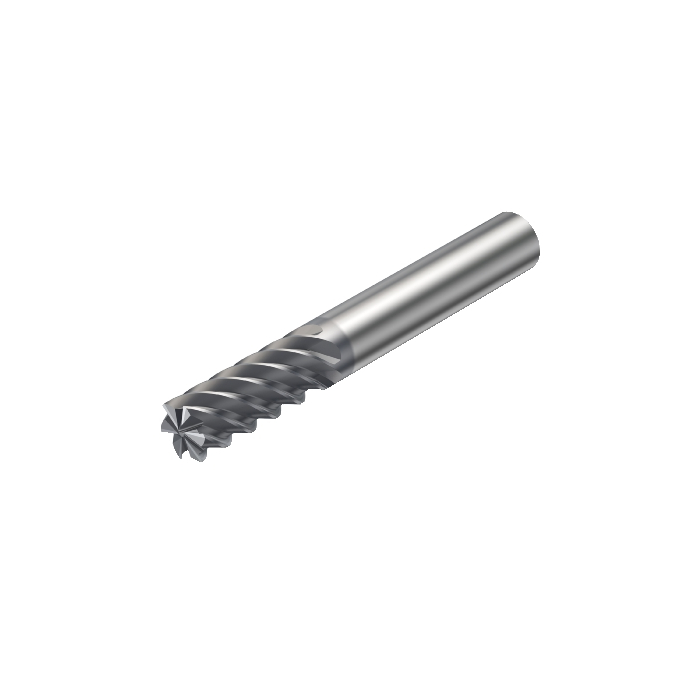

Sandvik Coromant R215.36-05030-AC13H 1610 CoroMill™ Plura solid carbide end mill for Finishing
Next
Sandvik Coromant R215.36-16050-AC32L 1620 CoroMill™ Plura solid carbide end mill for Finishing
Previous
![Sandvik Coromant R215.36-05030-AC13H 1610 CoroMill™ Plura solid carbide end mill for Finishing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6310191fe/sandvik-coromant-r215-36-05030-ac13h-1610-coromilltm-plura-solid-carbide-end-mill-for-finishing.jpg)
![Sandvik Coromant R215.36-16050-AC32L 1620 CoroMill™ Plura solid carbide end mill for Finishing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6309951b0/sandvik-coromant-r215-36-16050-ac32l-1620-coromilltm-plura-solid-carbide-end-mill-for-finishing.jpg)
R 1 357,00
inc. vat
In stock
SKU
5742819
CoroMill® Plura solid carbide end mill for Finishing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Finishing
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 57mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.031kg |
OAL - Overall Length | 57mm |
OHX - Maximum Overhang | 21mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 3deg |
LU - Usable Length | 13mm |
APMX - Depth Of Cut Maximum | 13mm |
KCH - Corner Chamfer | 45deg |
CHW - Corner Chamfer Width | 0.1mm |
DC - Cutting Diameter | 5mm |
DCF - Cutting Diameter Face Contact | 4.8mm |
FHA - Flute Helix Angle | 50deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ULDR - Usable Length Diameter Ratio | 2.6 |
ORDCODE | R215.35-05050-AC13L 1620 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 08:57:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1620 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | DIN 6527 L |
ZEFP - Peripheral Effective Cutting Edge Count | 5 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | False |
CPDF - Cutting Pitch Differential | False |
