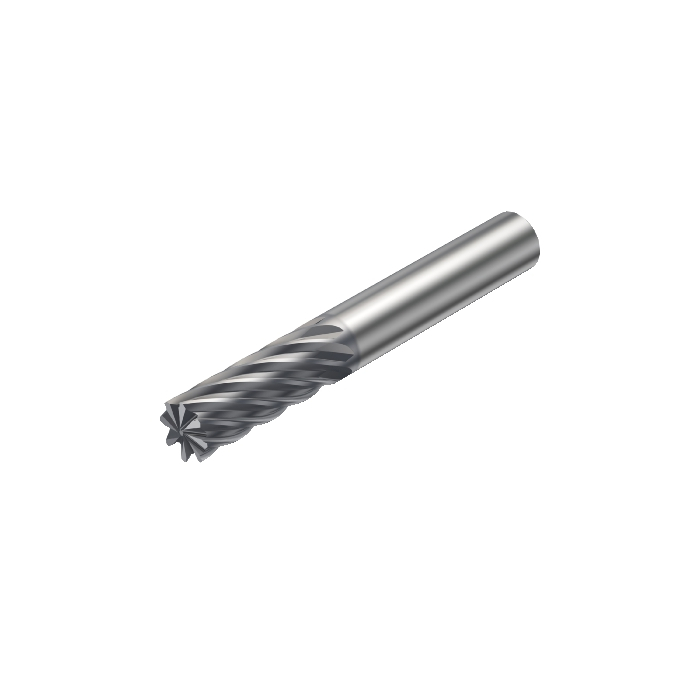

Sandvik Coromant R215.3E-14030-AC26H 1610 CoroMill™ Plura solid carbide end mill for Finishing

Name: Sandvik Coromant R215.3E-14030-AC26H 1610 CoroMill™ Plura solid carbide end mill for Finishing
SKU: 5742642
Price: 4750.65 ZAR
Availability: InStock

Be the first to review this product

R 4 750,65 inc. vat

In stock

SKU

5742642

CoroMill® Plura solid carbide end mill for Finishing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Finishing

More Information

More Information
DCON - Connection Diameter	14mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	83mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.2kg
OAL - Overall Length	83mm
OHX - Maximum Overhang	38mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	2deg
RE - Corner Radius	0mm
LU - Usable Length	26mm
APMX - Depth Of Cut Maximum	26mm
DC - Cutting Diameter	14mm
DCF - Cutting Diameter Face Contact	14mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	-8.5deg
GAMP - Axial Rake Angle	1.5deg
ULDR - Usable Length Diameter Ratio	1.857142857143
ORDCODE	R215.3E-14030-AC26H 1610
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1400_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:07:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1610
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	14
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	False
