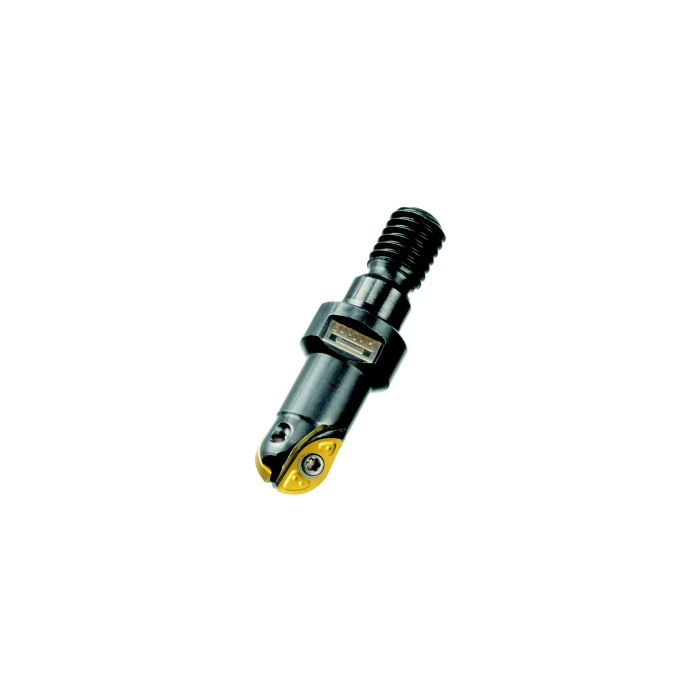

Sandvik Coromant R216-12B20-060 CoroMill™ 216 ball nose milling cutter
Next
Sandvik Coromant R216-10A16-050 CoroMill™ 216 ball nose milling cutter
Previous
![Sandvik Coromant R216-12B20-060 CoroMill™ 216 ball nose milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/63504336f/sandvik-coromant-r216-12b20-060-coromilltm-216-ball-nose-milling-cutter.jpg)
![Sandvik Coromant R216-10A16-050 CoroMill™ 216 ball nose milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/635190039/sandvik-coromant-r216-10a16-050-coromilltm-216-ball-nose-milling-cutter.jpg)
R 5 807,50
inc. vat
In stock
SKU
5743640
CoroMill® 216 ball nose milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 216 ball nose milling cutter
DCON - Connection Diameter | 12.8mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 25mm |
BD - Body Diameter | 10.8mm |
LB - Body Length | 18mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 1.2Nm |
RPMX - Rotational Speed Maximum | 127001/min |
WT - Weight Of Item | 87.8g |
OAL - Overall Length | 42.5mm |
OHX - Maximum Overhang | 25mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 85deg |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 10deg |
AN - Clearance Angle Major | 9deg |
Insert Thickness | 2.38125mm |
LU - Usable Length | 18.3mm |
APMX - Depth Of Cut Maximum | 10.8mm |
DC - Cutting Diameter | 12mm |
DCF - Cutting Diameter Face Contact | 0mm |
DCX - Maximum Cutting Diameter | 12mm |
AZ - Maximum Plunge Depth | 6mm |
CEMR - Cutting Edge Major Radius | 6mm |
PRFRAD - Profile Radius | 6mm |
ORDCODE | R216-12T08 |
ADINTMS - Adaptive Interface Machine Direction | M_SAC03_A0080_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 14:45:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MP1202_1 |
Hand | R |
MIID - Master Insert Identification | R216-12 02 |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 12 |
TDZ - Thread Diameter Size | M 8 |
CICT - Cutting Item Count | 2 |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
