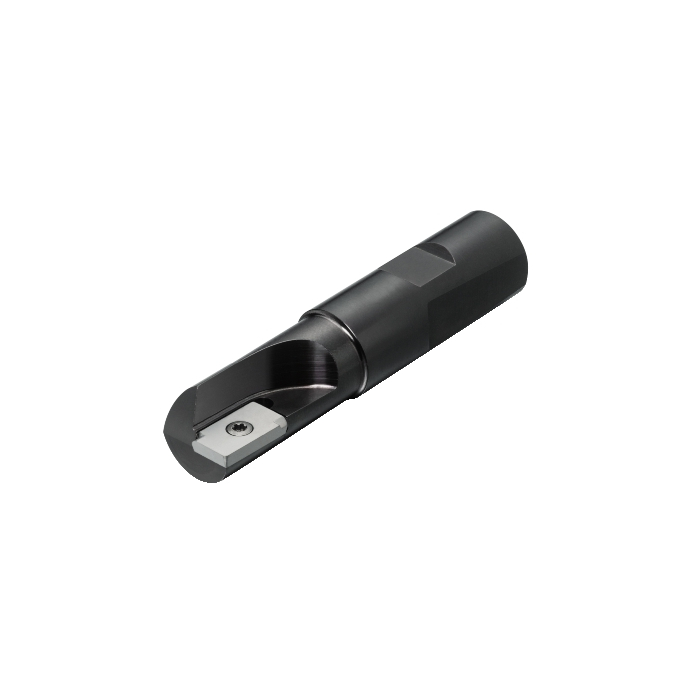

Sandvik Coromant R216.2-716 U-Max™ square shoulder milling cutter

Name: Sandvik Coromant R216.2-716 U-Max™ square shoulder milling cutter
SKU: 5743040
Price: 4840.35 ZAR
Availability: InStock

R 4 840,35 inc. vat

In stock

SKU

5743040

U-Max® square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

U-Max® square shoulder milling cutter

More Information
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	78mm
TQ - Torque	0.9Nm
RPMX - Rotational Speed Maximum	189001/min
WT - Weight Of Item	0.204kg
OAL - Overall Length	78mm
OHX - Maximum Overhang	30mm
LSC - Clamping Length	48mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	90deg
GAMO - Orthogonal Rake Angle	-4deg
LAMS - Inclination Angle	2deg
Insert Thickness	2.38125mm
H - Shank Height	14.2mm
APMX - Depth Of Cut Maximum	10mm
W1 - Insert Width	8.3mm
DC - Cutting Diameter	16mm
DCF - Cutting Diameter Face Contact	15.2mm
GAMF - Radial Rake Angle	-3.99999989deg
GAMP - Axial Rake Angle	2.00000003deg
AZ - Maximum Plunge Depth	10mm
ORDCODE	R216.2-716
ADINTMS - Adaptive Interface Machine Direction	M_CYLWNW_G1600_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-13 01:49:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MZ1002C_1
Hand	R
MIID - Master Insert Identification	R216.2-100204
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	10
TCDCON - Connection Diameter Tolerance	h6
CICT - Cutting Item Count	1
ZEFP - Peripheral Effective Cutting Edge Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
