R 6 962,10
inc. vat
In stock
SKU
5743666
CoroMill® 216 ball nose milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days

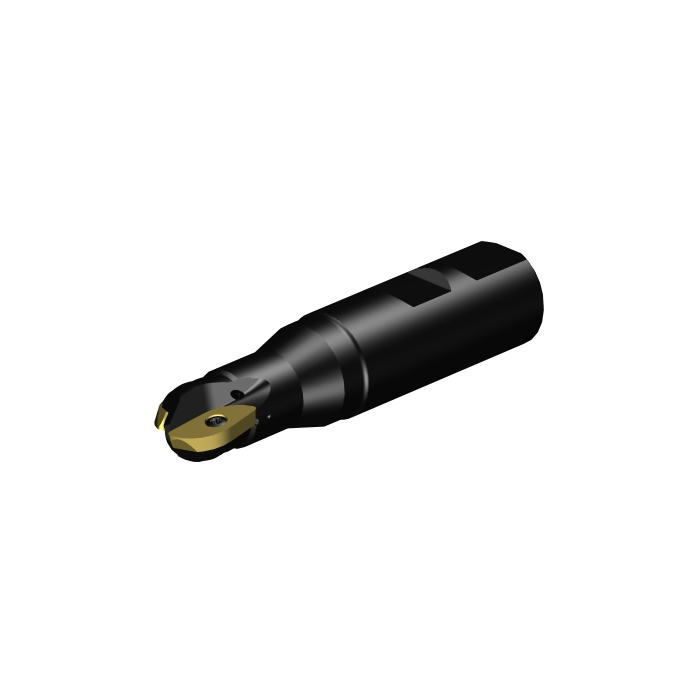

CoroMill® 216 ball nose milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 25mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 107mm |
BD - Body Diameter | 18.4mm |
LB - Body Length | 33mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 2Nm |
RPMX - Rotational Speed Maximum | 240001/min |
WT - Weight Of Item | 0.286kg |
OAL - Overall Length | 107mm |
OHX - Maximum Overhang | 51mm |
LSC - Clamping Length | 57mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 85deg |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 10deg |
AN - Clearance Angle Major | 9deg |
Insert Thickness | 3.96875mm |
H - Shank Height | 23mm |
LU - Usable Length | 35.2mm |
MHD - Mounting Hole Distance | 32mm |
APMX - Depth Of Cut Maximum | 17.9mm |
DC - Cutting Diameter | 20mm |
DCF - Cutting Diameter Face Contact | 0mm |
DCX - Maximum Cutting Diameter | 20mm |
AZ - Maximum Plunge Depth | 10mm |
CEMR - Cutting Edge Major Radius | 10mm |
PRFRAD - Profile Radius | 10mm |
ORDCODE | R216-20B25-050 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLW_G2500_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:46:00.000 |
STDLET - Standard Letter | WE |
STDNO - Standard Number | DIN6535 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MP20T3_1 |
Hand | R |
MIID - Master Insert Identification | R216-20 T3 |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 20 |
TCDCON - Connection Diameter Tolerance | h6 |
CICT - Cutting Item Count | 2 |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
