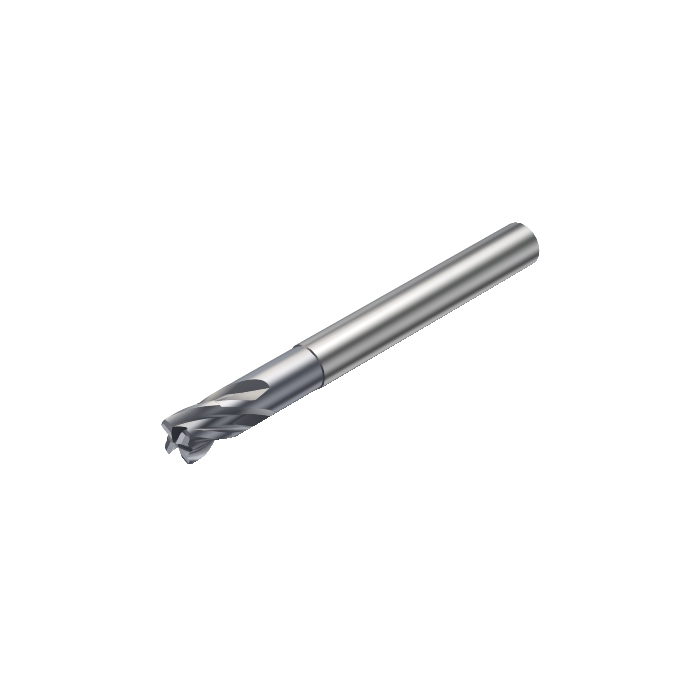

Sandvik Coromant R216.24-08030BAJ08G 1610 CoroMill™ Plura solid carbide end mill for Hard Part Milling
R 2 196,50
inc. vat
In stock
SKU
5742916
CoroMill® Plura solid carbide end mill for Hard Part Milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Hard Part Milling
DCON - Connection Diameter | 8mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 80mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.065kg |
OAL - Overall Length | 80mm |
OHX - Maximum Overhang | 44mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 2deg |
RE - Corner Radius | 0.5mm |
LU - Usable Length | 29mm |
APMX - Depth Of Cut Maximum | 8mm |
DC - Cutting Diameter | 8mm |
DCF - Cutting Diameter Face Contact | 7mm |
DN - Neck Diameter | 7.85mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | 1.5deg |
GAMP - Axial Rake Angle | 1.5deg |
ULDR - Usable Length Diameter Ratio | 3.625 |
ORDCODE | R216.24-08030BAJ08G 1610 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F8000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 08:54:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h5 |
Grade | 1610 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
