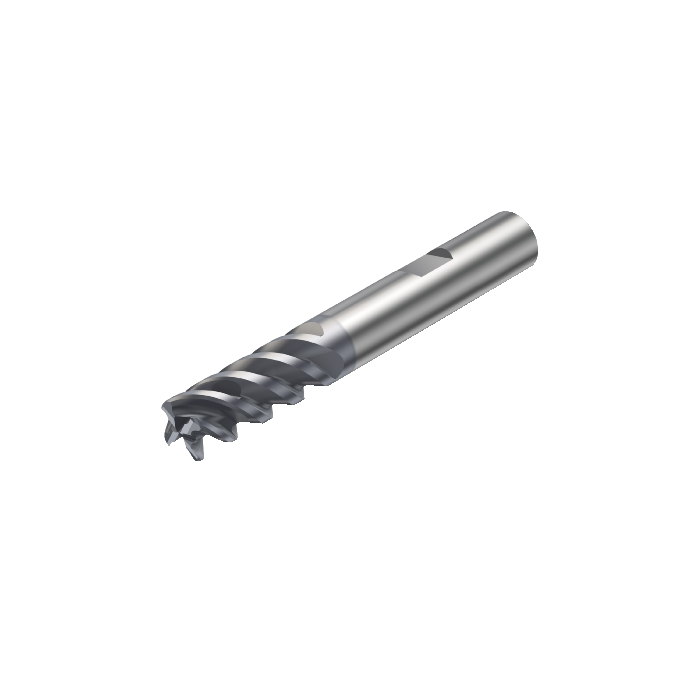

Sandvik Coromant R216.24-10050EBC22P 1630 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling

Name: Sandvik Coromant R216.24-10050EBC22P 1630 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
SKU: 5742930
Price: 2848.55 ZAR
Availability: InStock

Be the first to review this product

R 2 848,55 inc. vat

In stock

SKU

5742930

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

More Information

More Information
DCON - Connection Diameter	10mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	72mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.084kg
OAL - Overall Length	72mm
OHX - Maximum Overhang	32mm
LSC - Clamping Length	40mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	2mm
H - Shank Height	8.4mm
LU - Usable Length	22mm
MHD - Mounting Hole Distance	20mm
APMX - Depth Of Cut Maximum	22mm
DC - Cutting Diameter	10mm
DCF - Cutting Diameter Face Contact	6mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	2.2
ORDCODE	R216.24-10050EBC22P 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G1000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:08:00.000
STDLET - Standard Letter	HB
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	VFD
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
