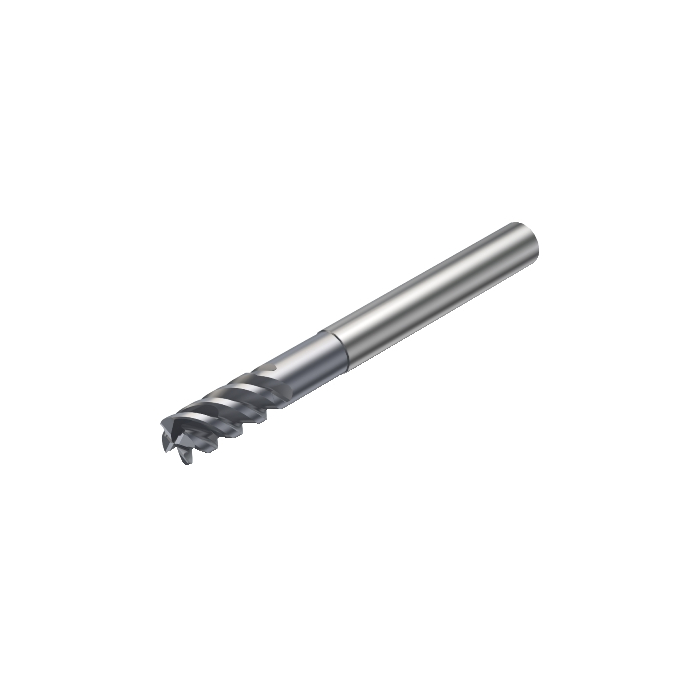

Sandvik Coromant R216.24-10050FCK22P 1620 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling

R 3 218,85 inc. vat
In stock
SKU
5742938
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
More Information
DCON - Connection Diameter 10mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 100mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.115kg
OAL - Overall Length 100mm
OHX - Maximum Overhang 60mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
RE - Corner Radius 2.5mm
LU - Usable Length 42mm
APMX - Depth Of Cut Maximum 22mm
DC - Cutting Diameter 10mm
DCF - Cutting Diameter Face Contact 5mm
DN - Neck Diameter 9.5mm
FHA - Flute Helix Angle 50deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 4.2
ORDCODE R216.24-10050FCK22P 1620
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 08:57:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1620
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation VFD
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
