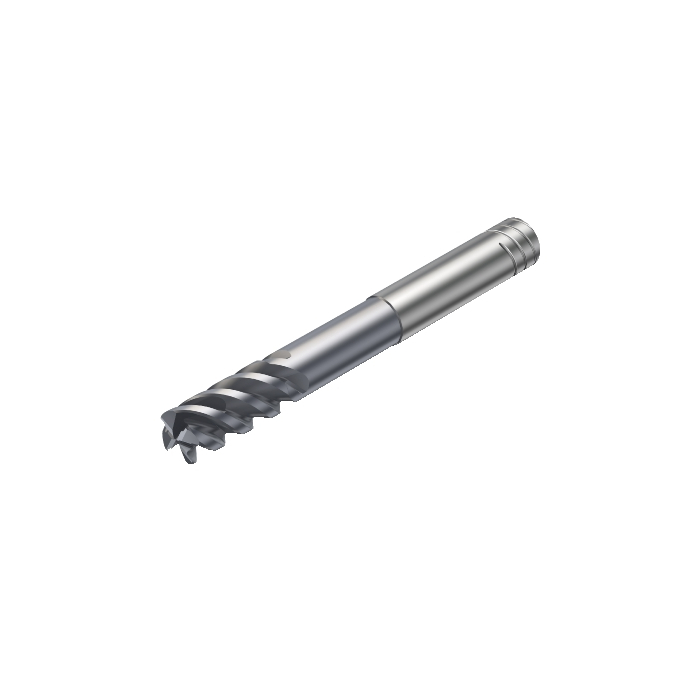

Sandvik Coromant R216.24-16050GYL36P 1620 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling

Name: Sandvik Coromant R216.24-16050GYL36P 1620 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
SKU: 6153943
Price: 8416.85 ZAR
Availability: OutOfStock

Be the first to review this product

R 8 416,85 inc. vat

Out of stock

SKU

6153943

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

More Information

More Information
DCON - Connection Diameter	16mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	128mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.345kg
OAL - Overall Length	128mm
OHX - Maximum Overhang	48mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	3mm
LU - Usable Length	80mm
APMX - Depth Of Cut Maximum	36mm
DC - Cutting Diameter	16mm
DCF - Cutting Diameter Face Contact	10mm
DN - Neck Diameter	15.2mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	5
ORDCODE	R216.24-16050GYL36P 1620
ADINTMS - Adaptive Interface Machine Direction	M_HAIM_G1600_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-08-24 01:09:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	VFD
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
